Discontinued Item

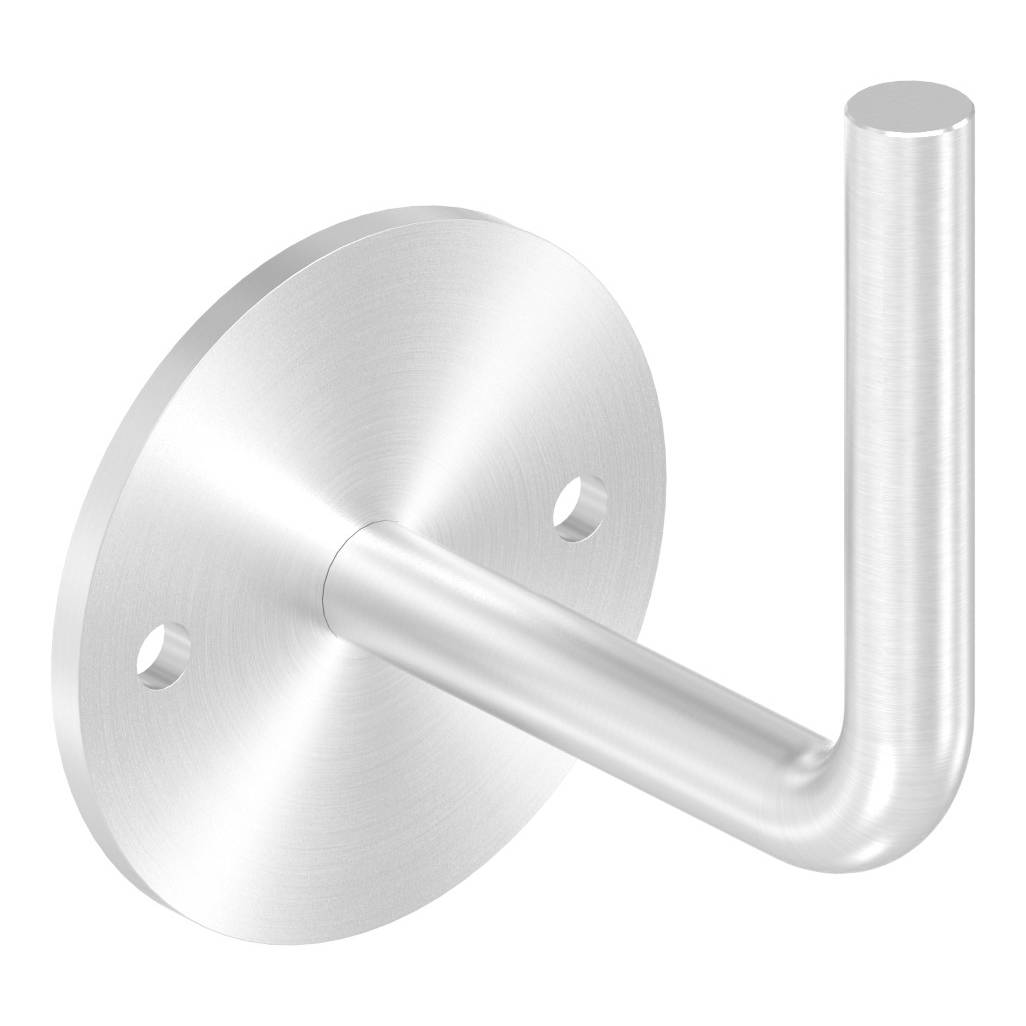

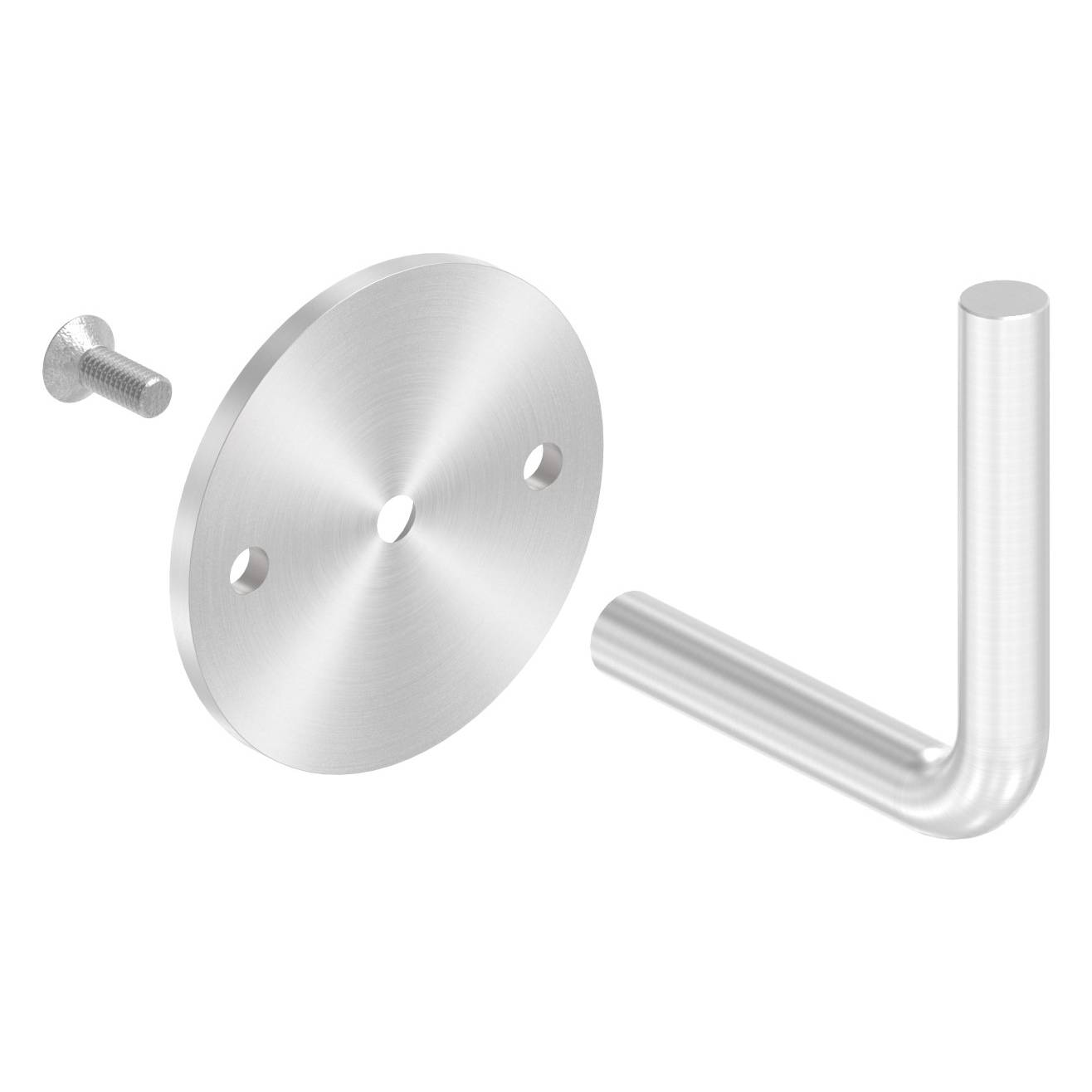

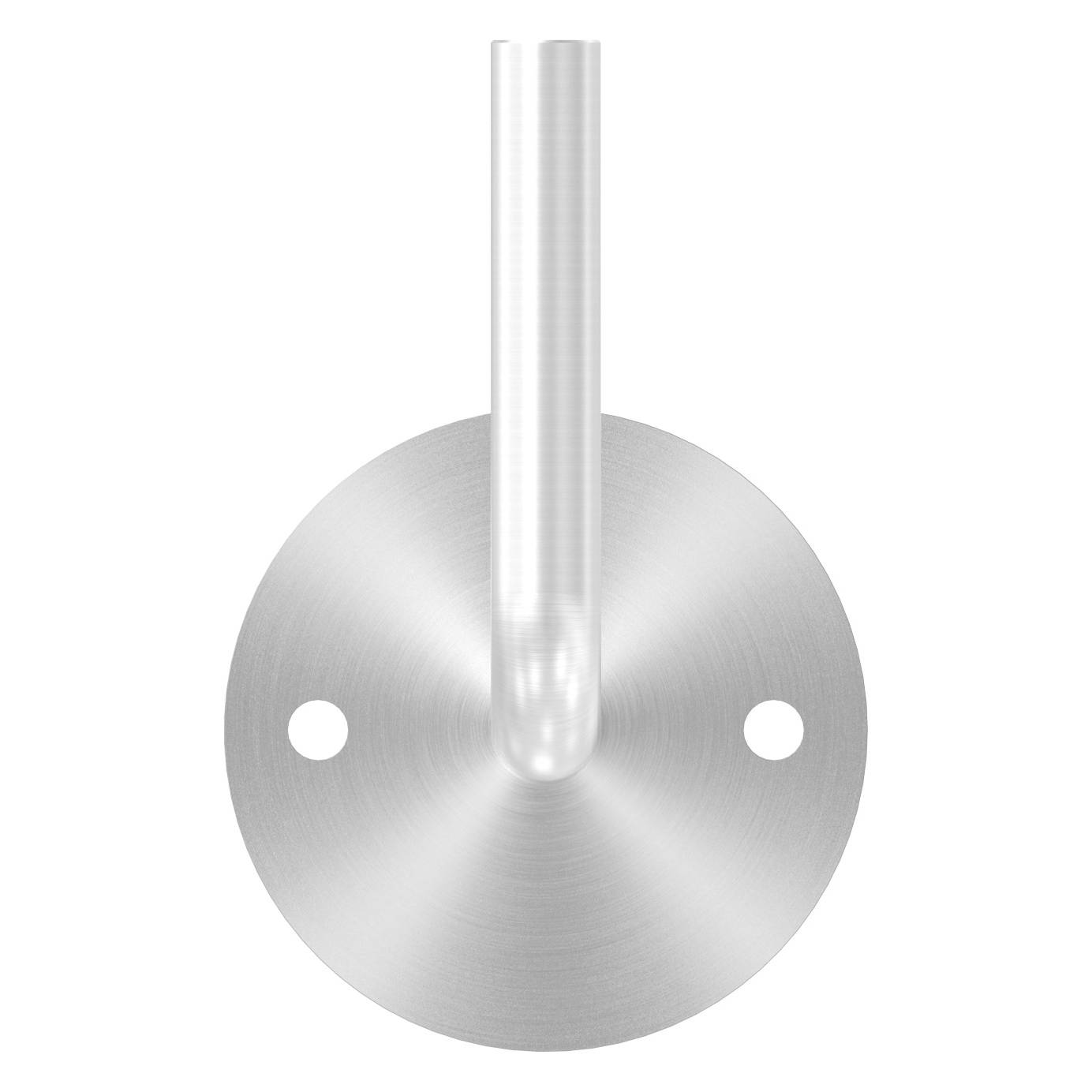

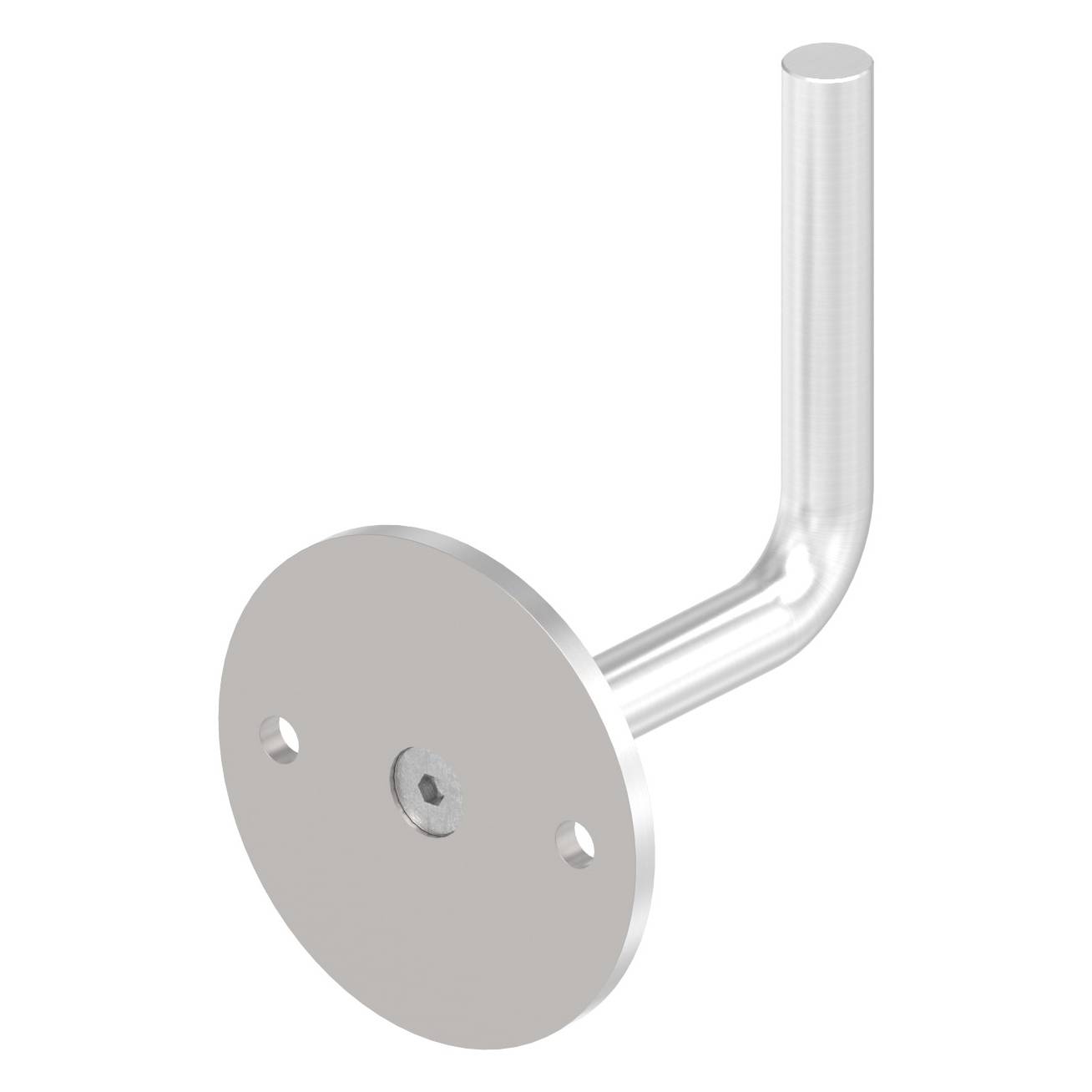

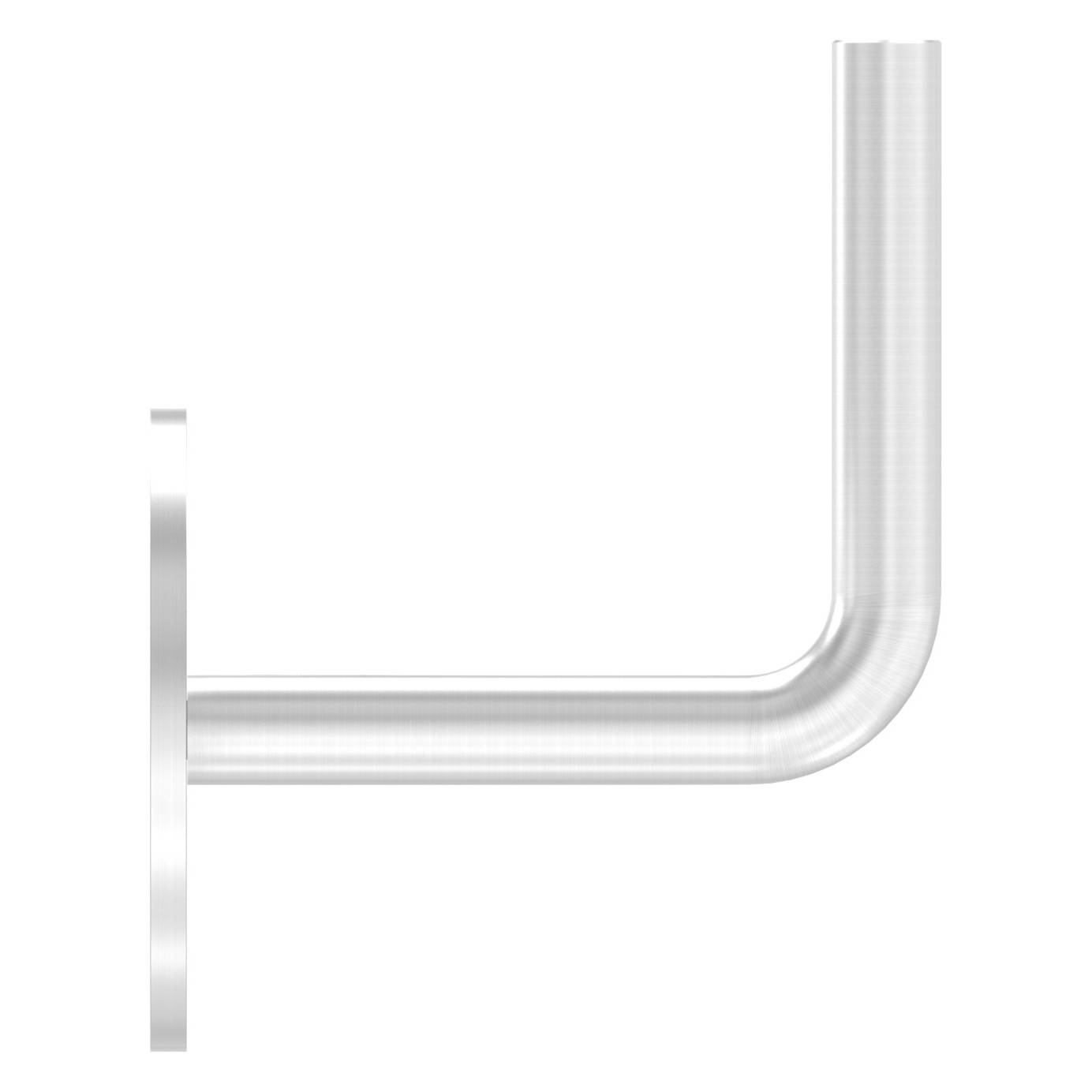

Handrail bracket for welding (round plate and bracket screwed together), AISI316
Art-Nr.50300-V4A|In stock|Remaining stock: 26 Piece

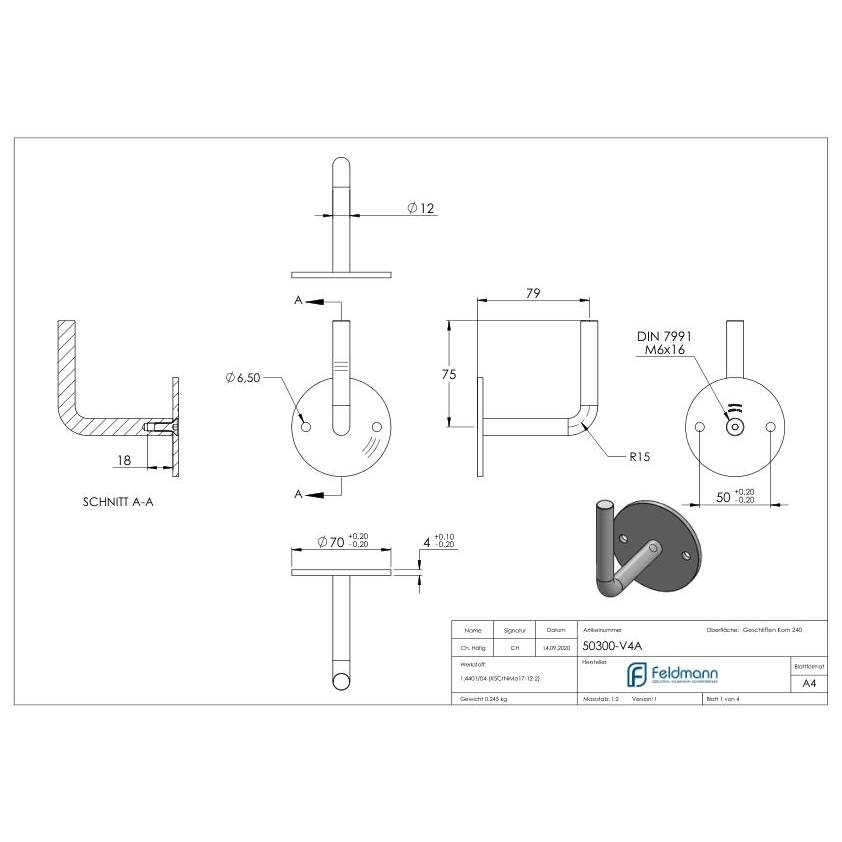

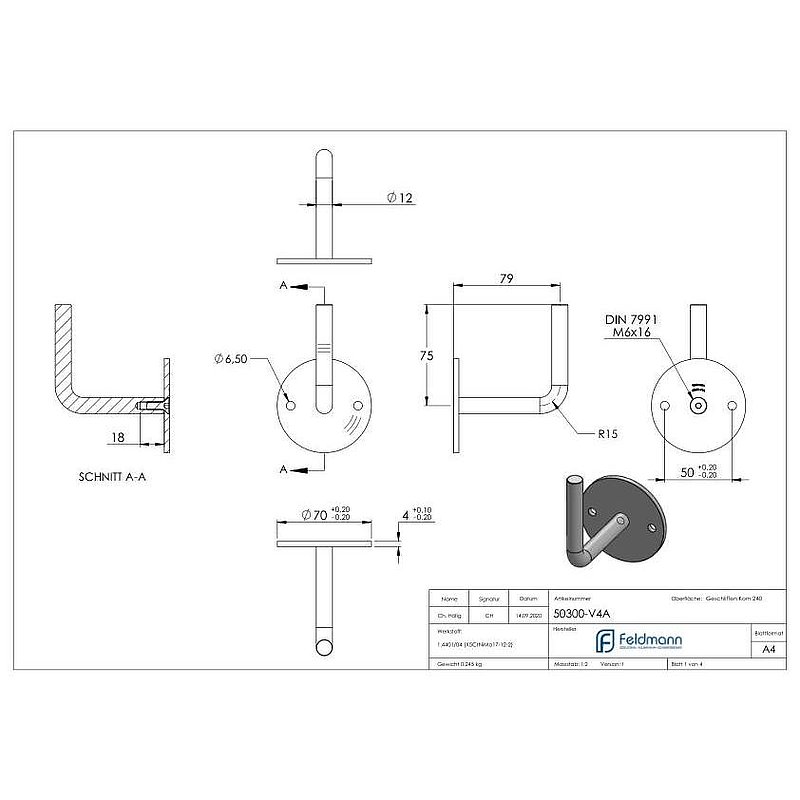

Handrail bracket for welding on the handrail, round plate 70x4mm, bracket 12mm, wall distance 79mm, 2x6.5mm holes (round plate and bracket screwed together), AISI316
| Article number | 50300-V4A |
| Weight in Kg | 0.241 |
| Length x Width x Height in mm | 108 x 69 x 83 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V4A (1.4401/04) |
Handrail mounting |
zum Schweißen |
Number of mounting holes |
2 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
