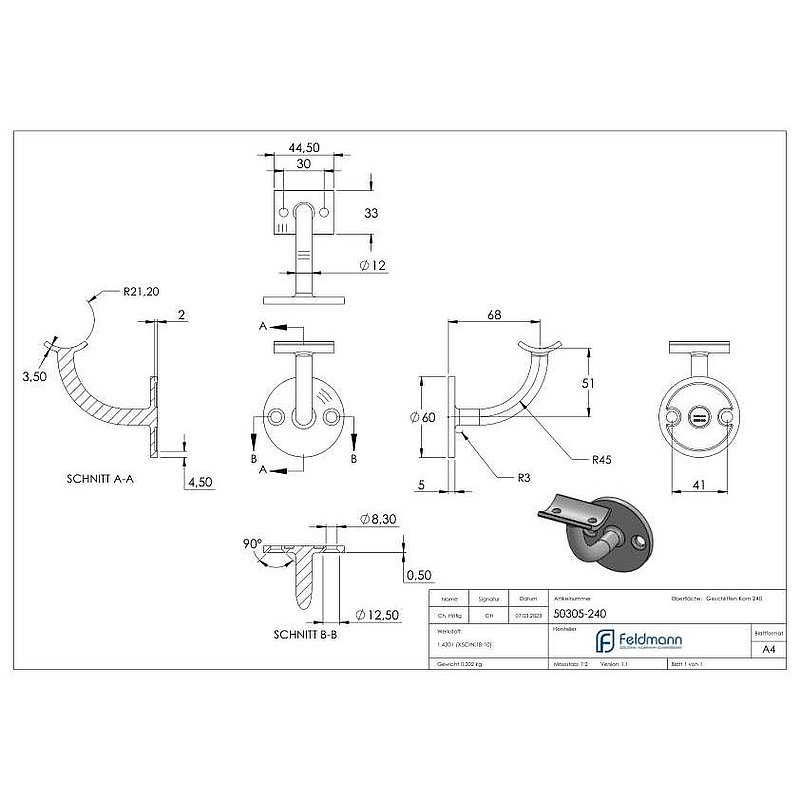

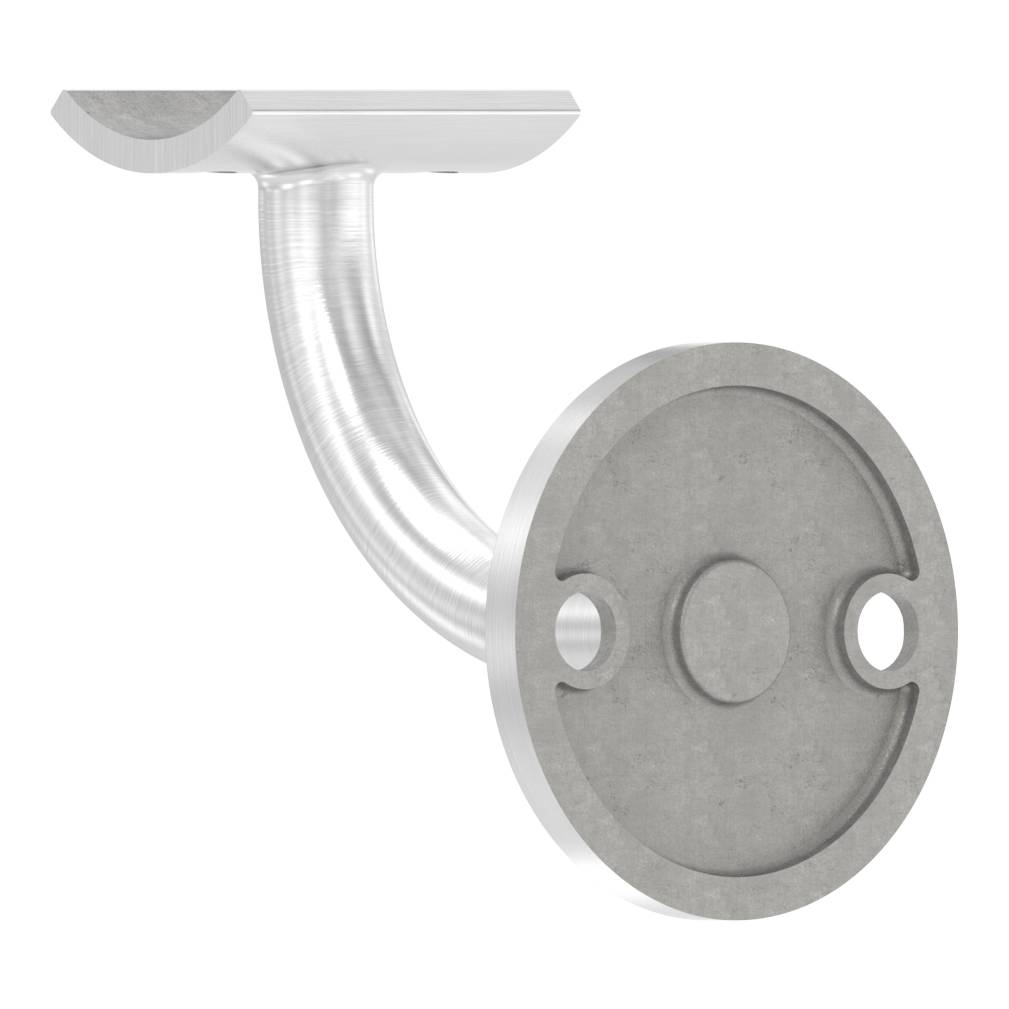

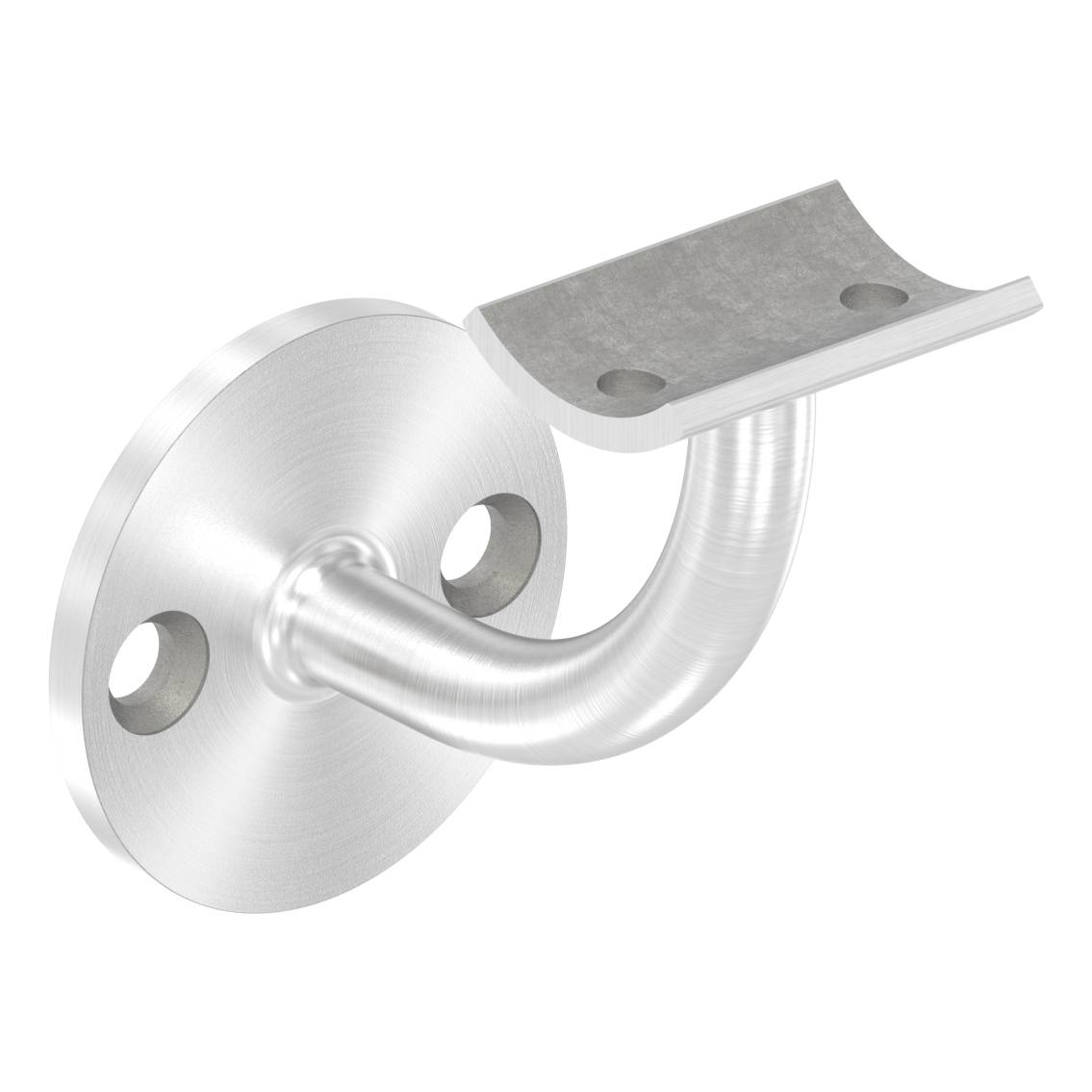

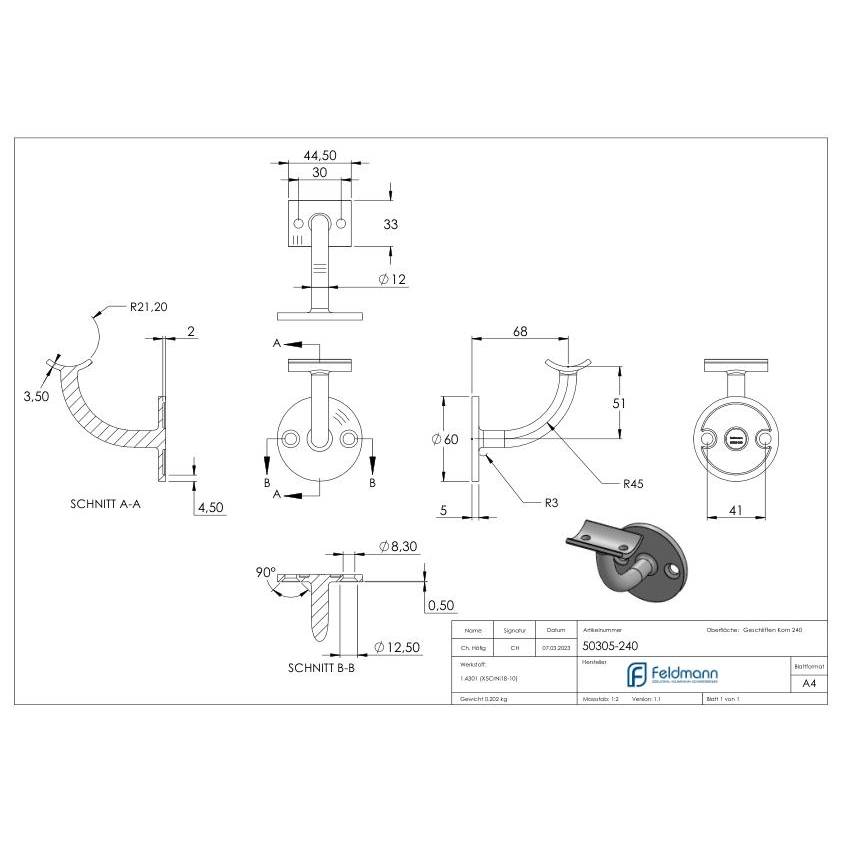

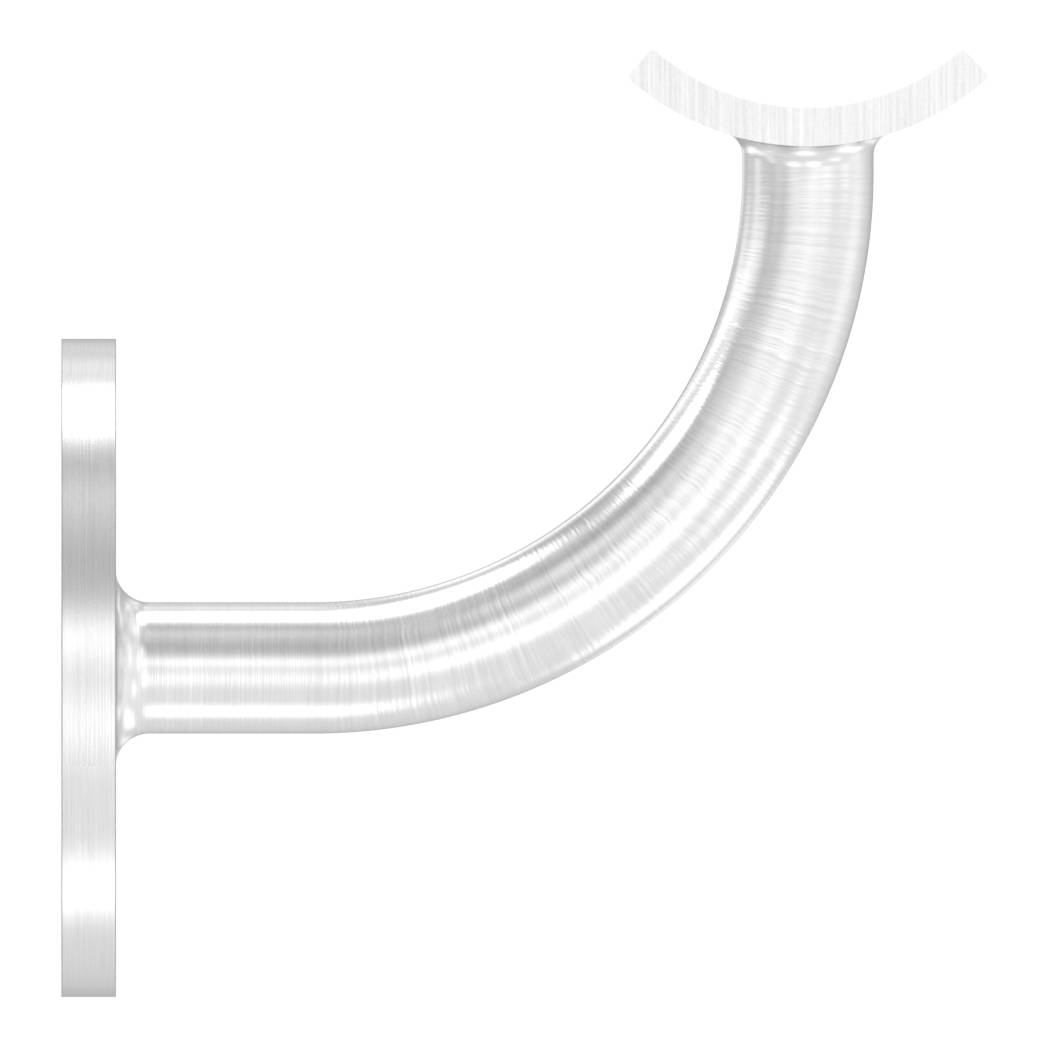

Handrail bracket with handrail connection plate 42.4mm, (round plate and bracket welded), AISI304
Art-Nr.50305-240|In stock
Handrail holder with handrail connection plate for tube 42.4mm (not interchangeable), round plate 60x5mm, bracket 12mm, wall distance 68mm, 2x8.3mm holes countersunk, (round plate and bracket welded), AISI304
| Article number | 50305-240 |
| Weight in Kg | 0.22 |
| Length x Width x Height in mm | 91 x 59 x 83 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schrauben |
Number of mounting holes |
2 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm |
