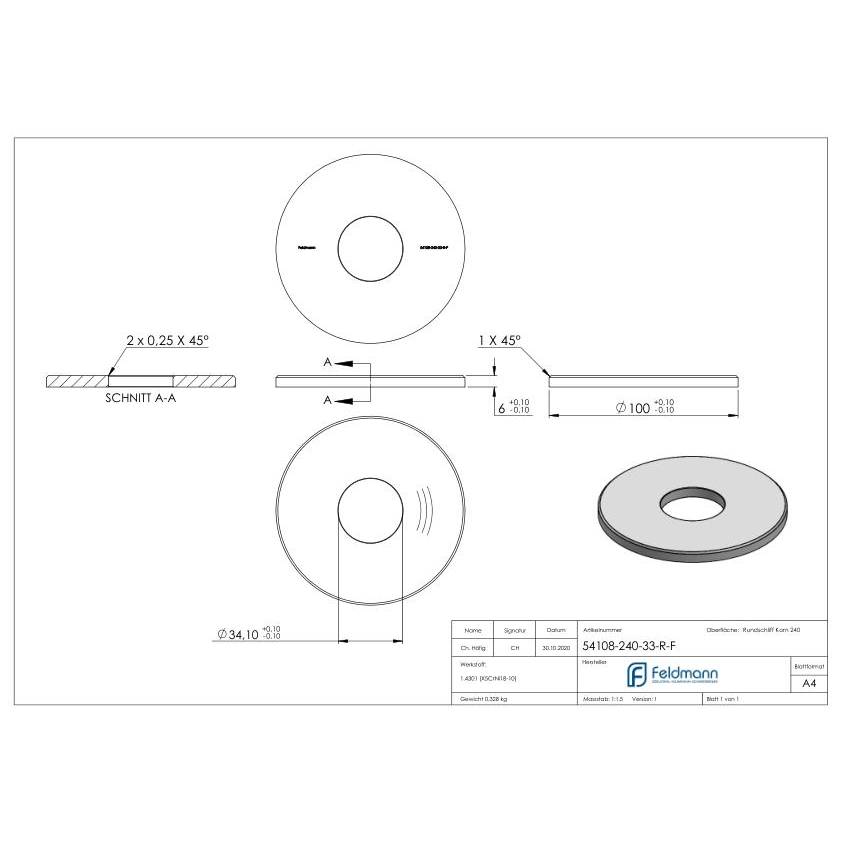

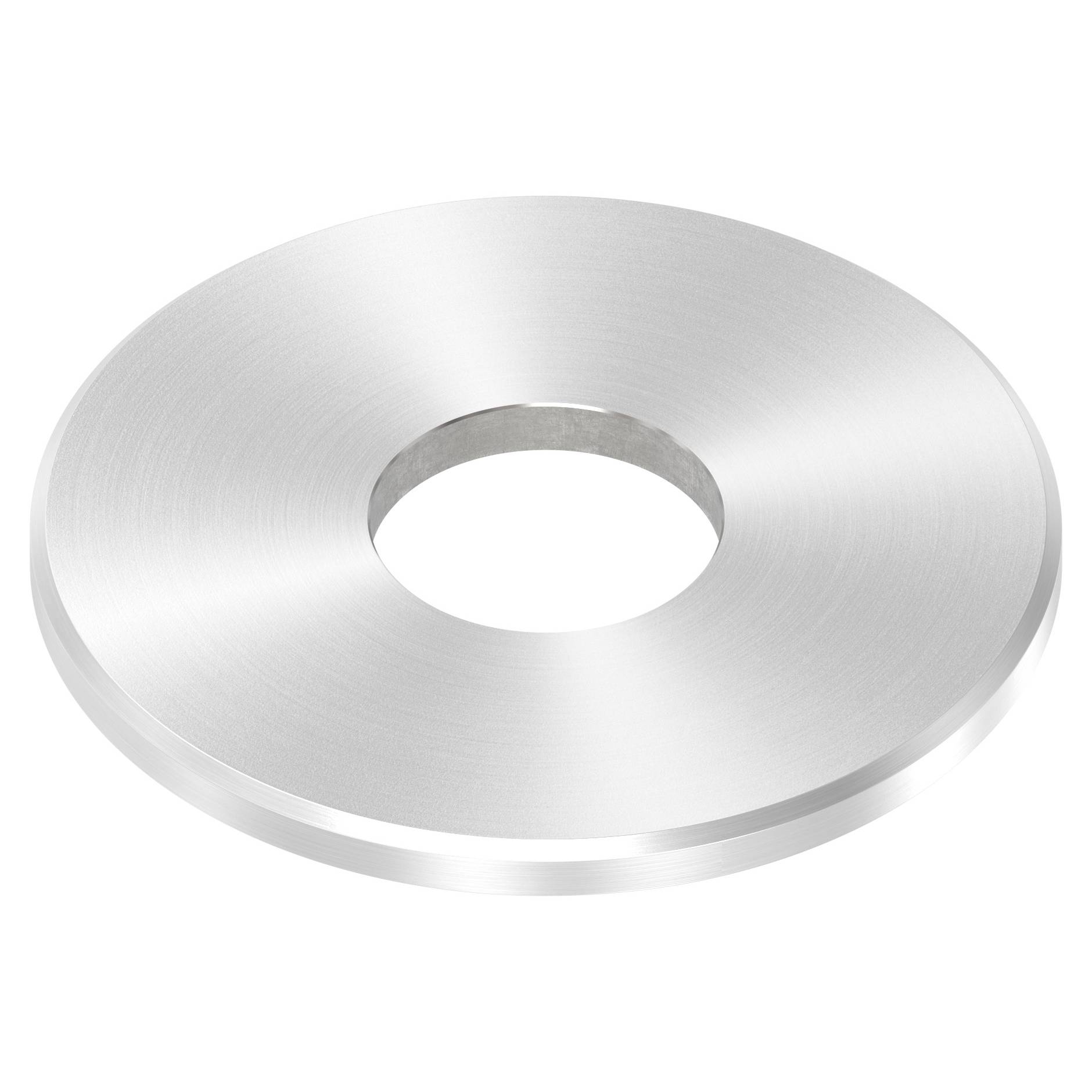

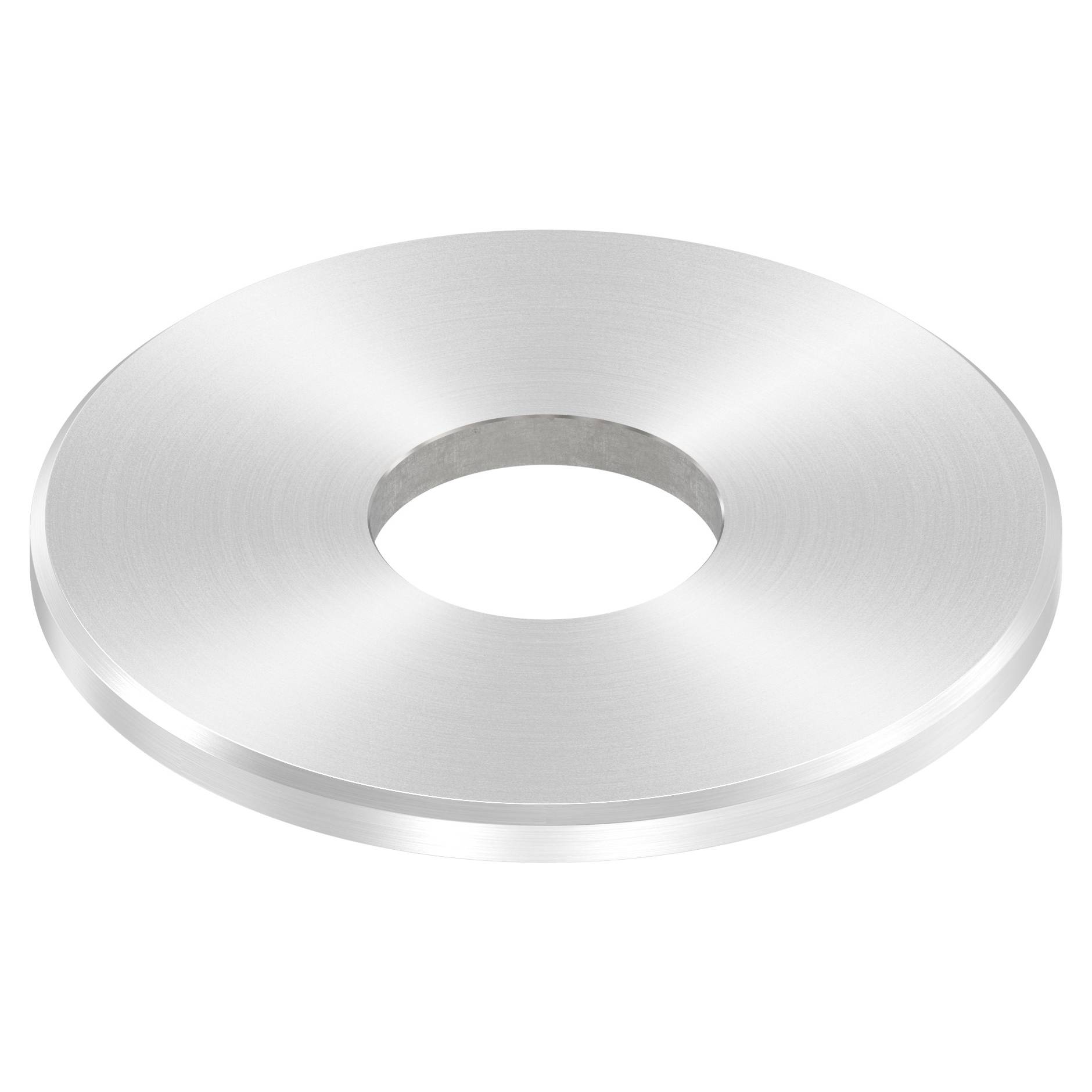

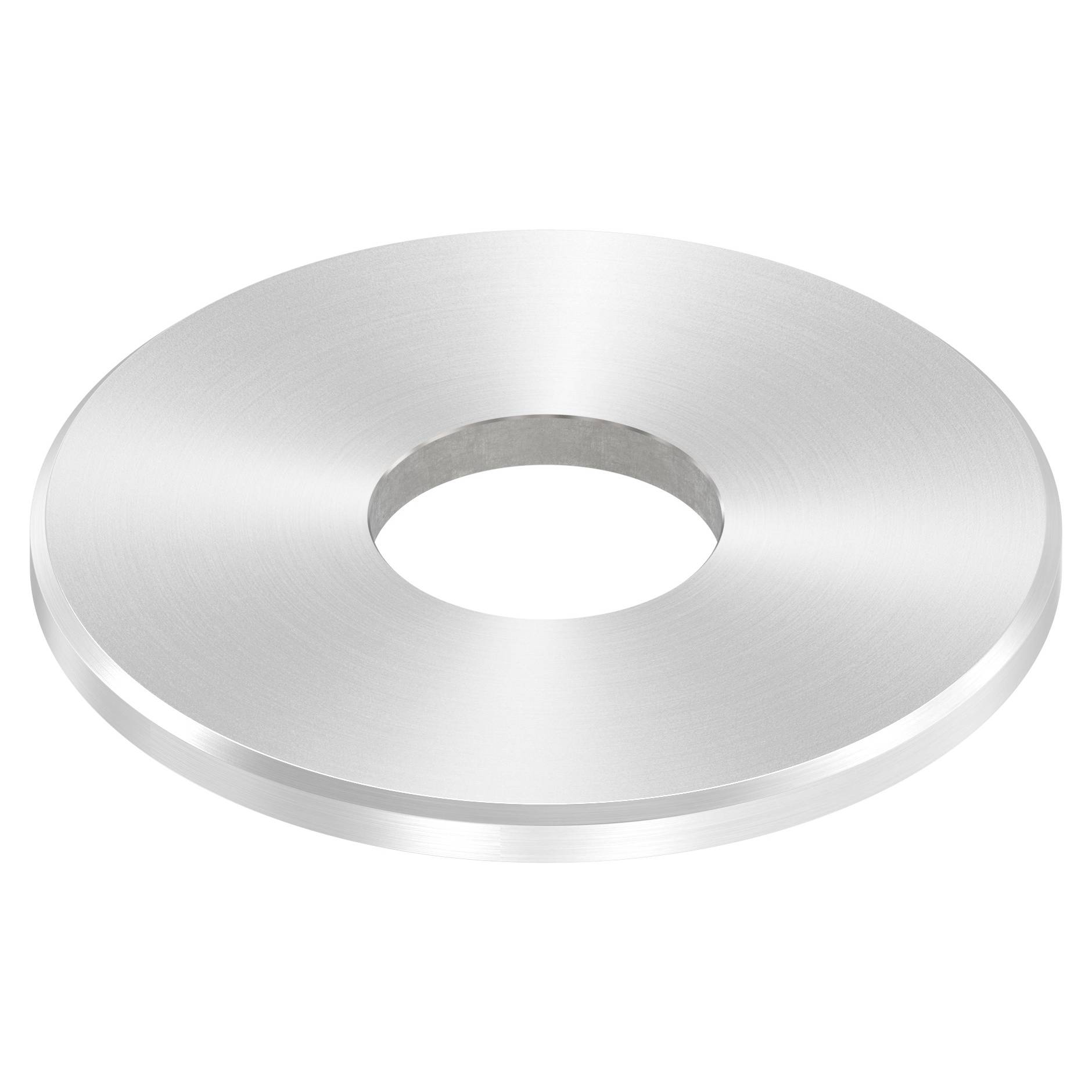

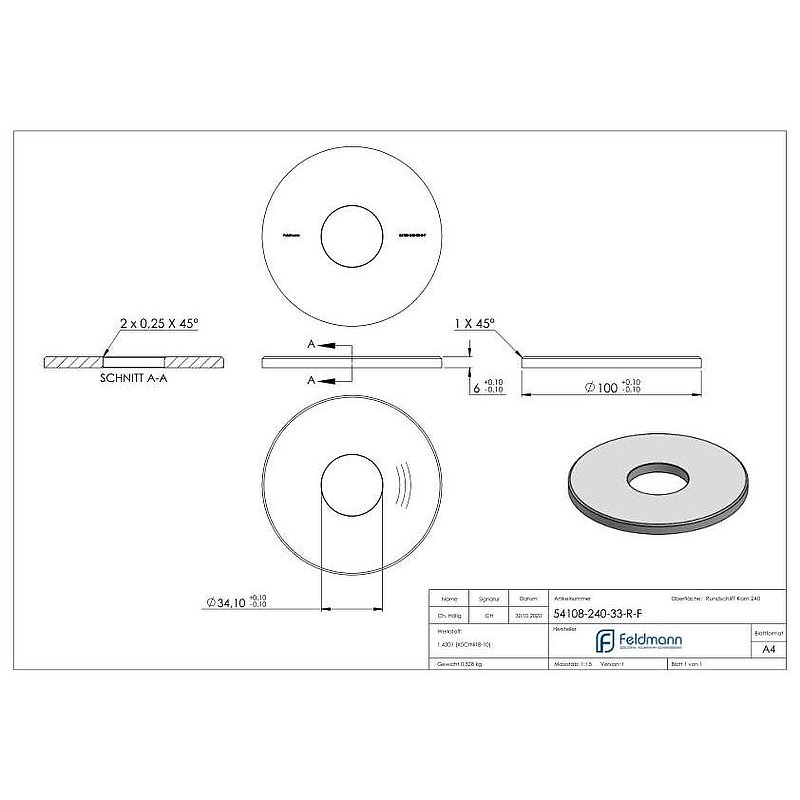

Anchor plate Ø 100x6mm, with bevelled edge and chamfer, AISI304
Art-Nr.54108-240-33-R-F|In stock
Anchor plate, Ø 100x6mm, with centre hole Ø 34mm, with round grinding and chamfer, AISI304
| Article number | 54108-240-33-R-F |
| Weight in Kg | 0.319 |
| Length x Width x Height in mm | 99 x 99 x 5 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Shape |
rund |
Diameter |
100mm |
Mounting hole |
ohne |
Finish |
rund |
Center hole |
Ø33,7mm |
Chamfer |
ja |
