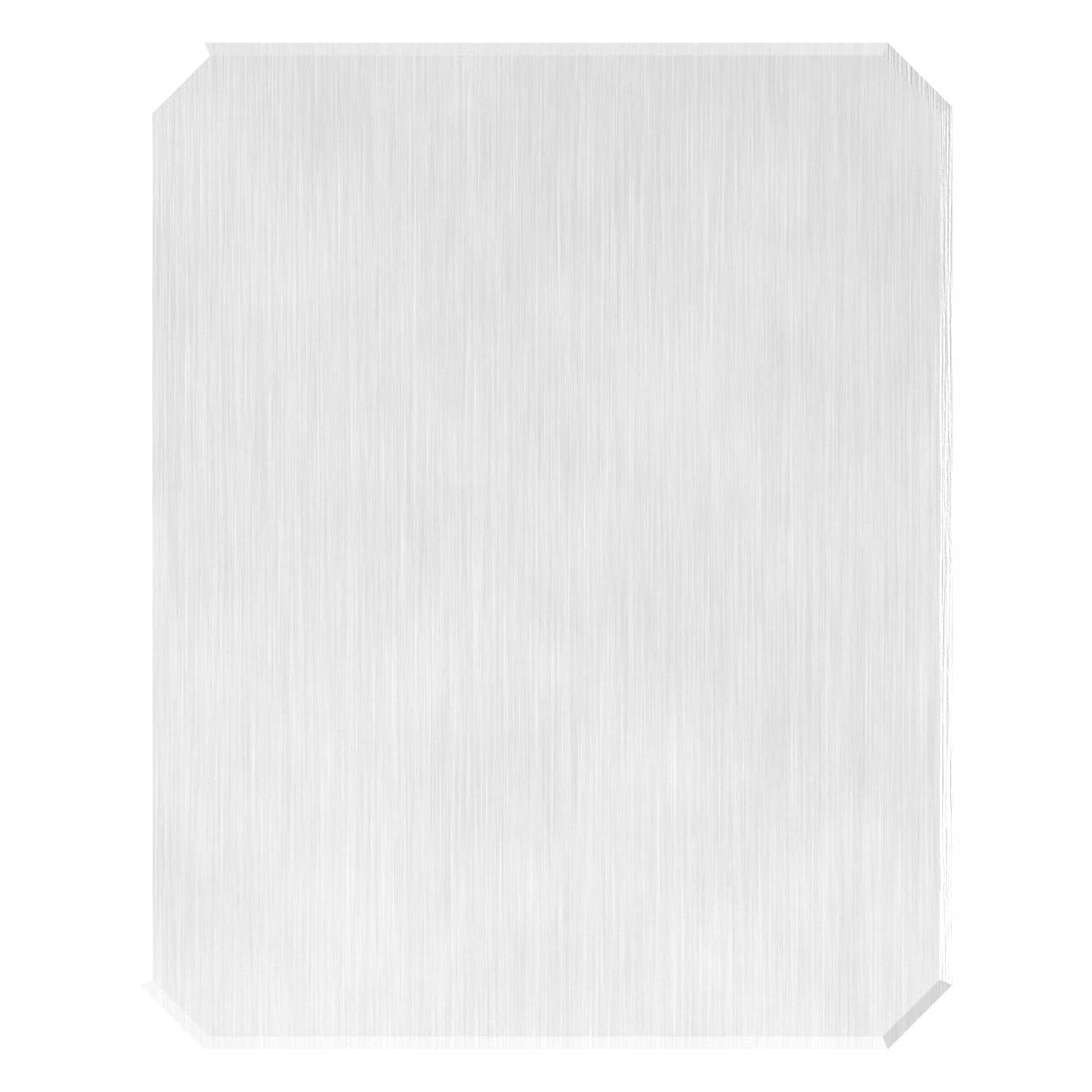

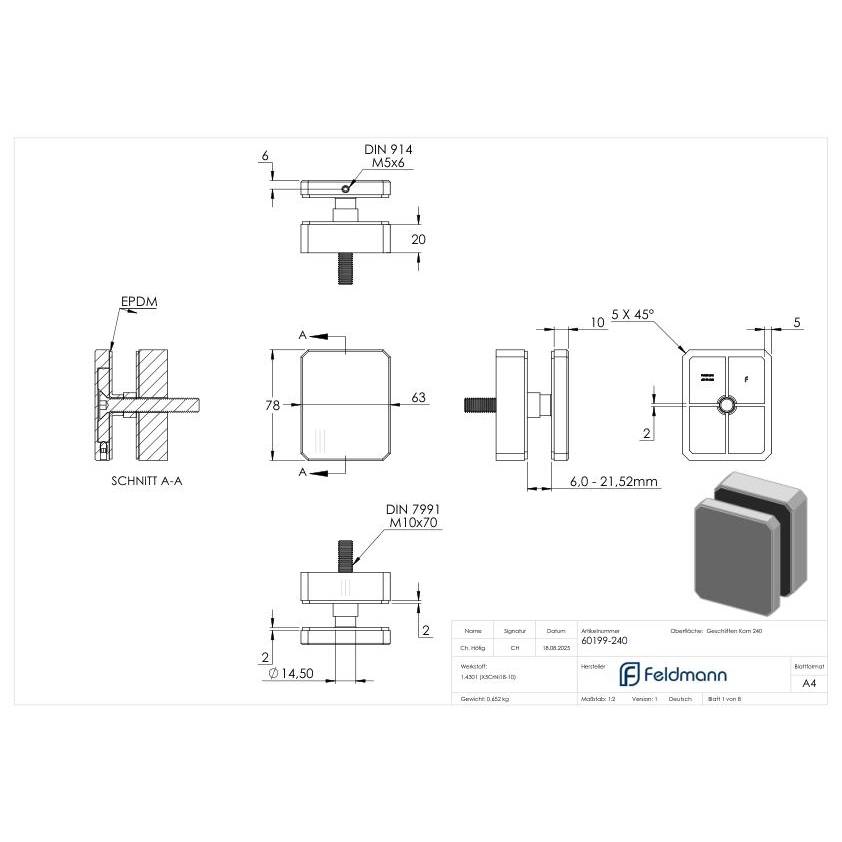

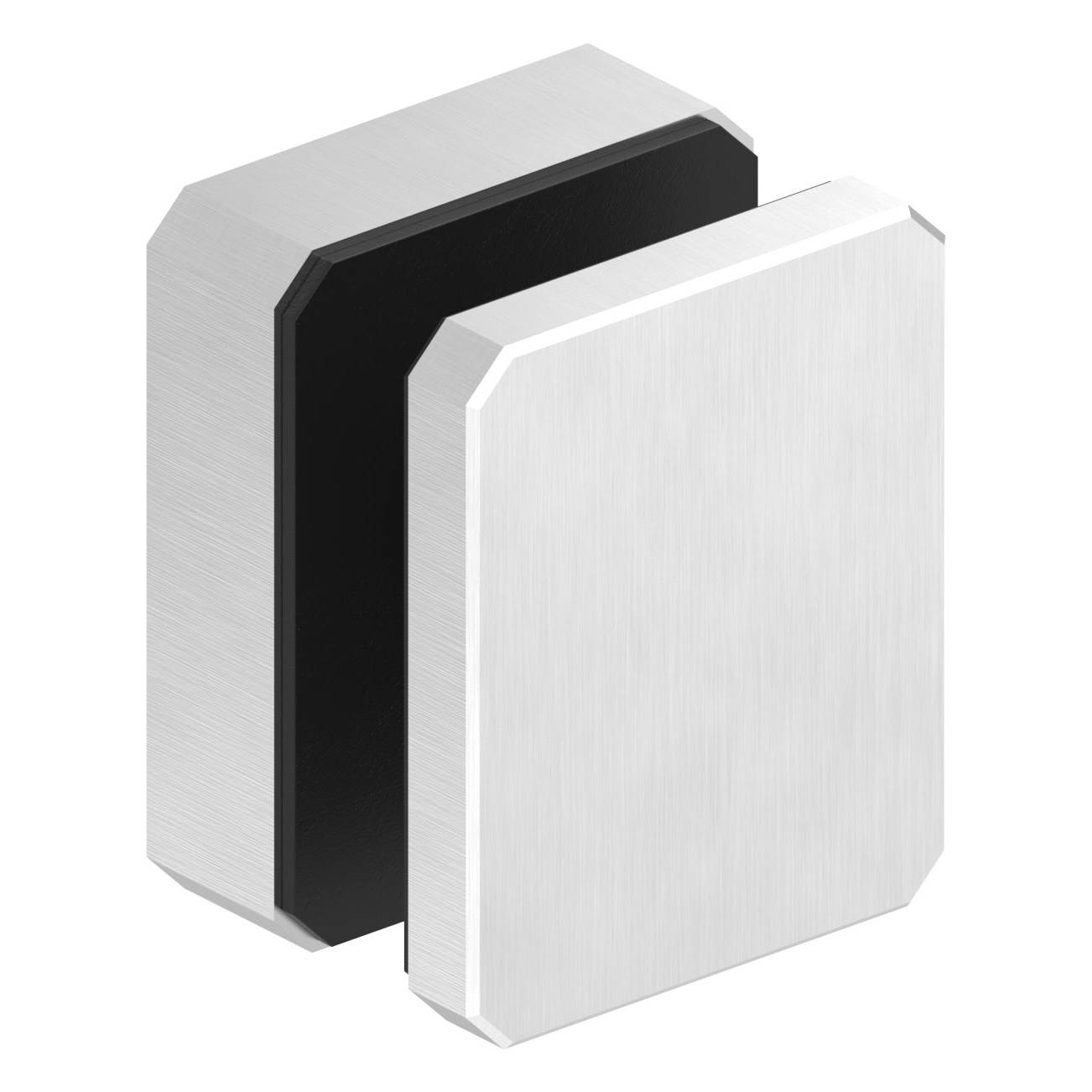

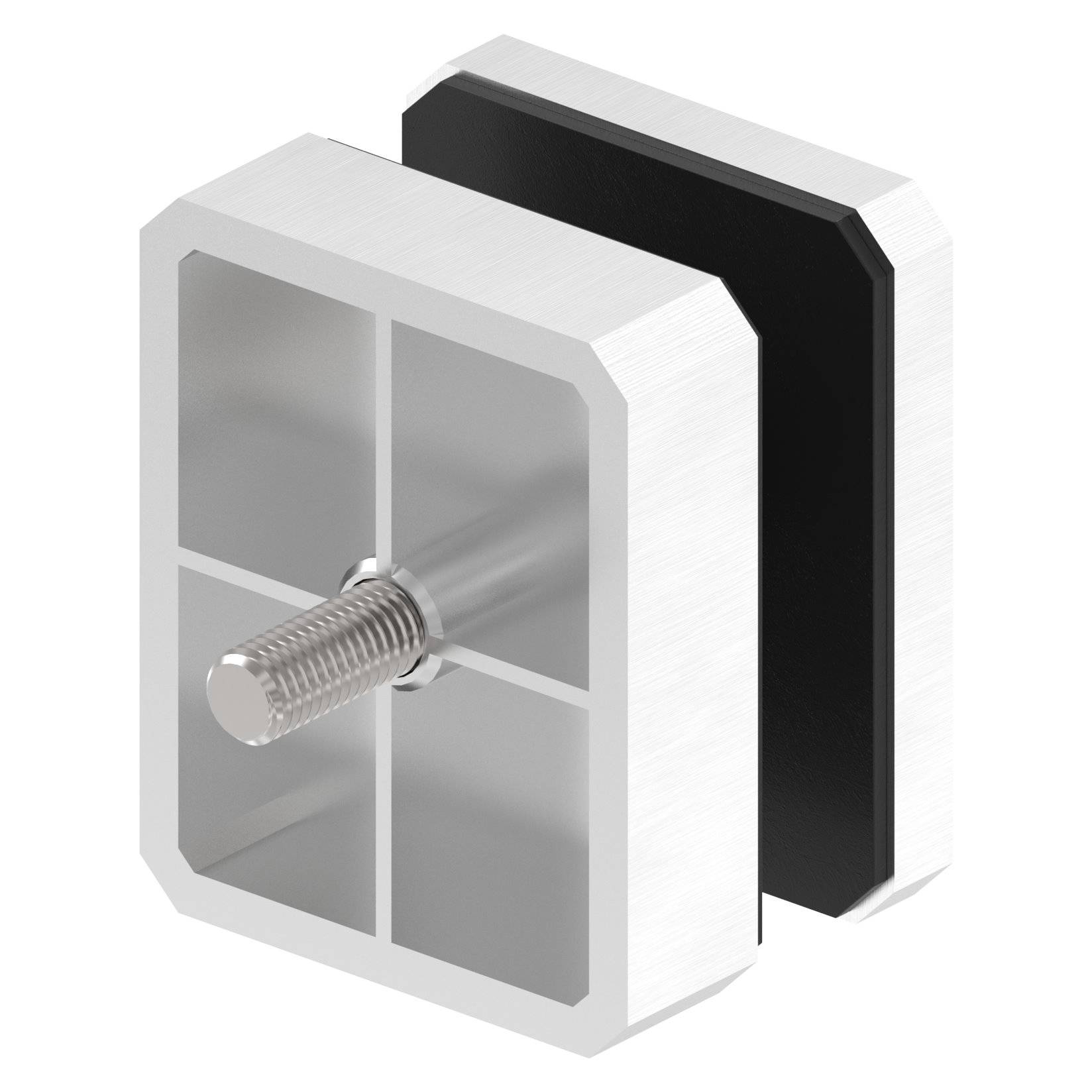

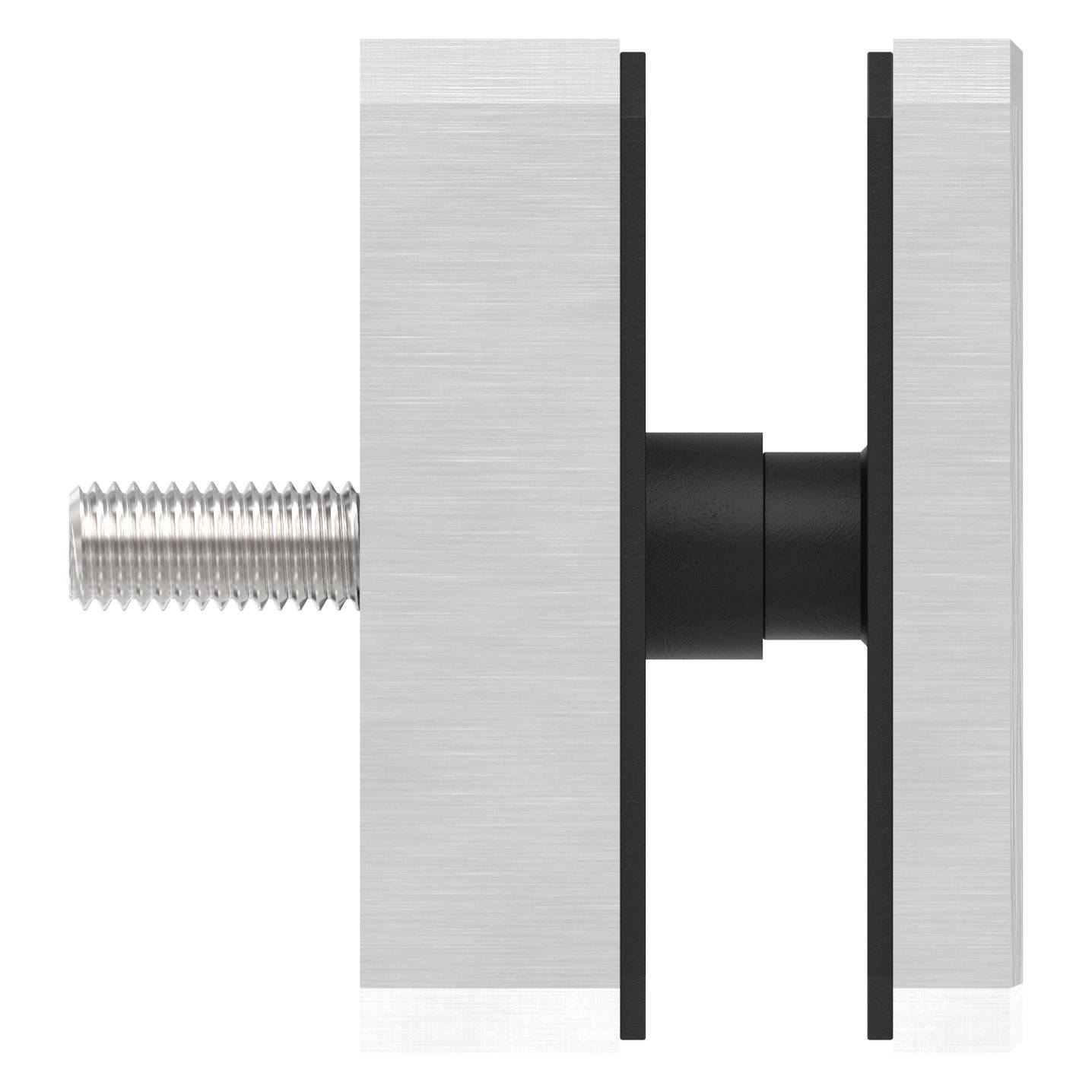

Glass point holder 63x78mm, flat, AISI304
Art-Nr.60199-240|In stock

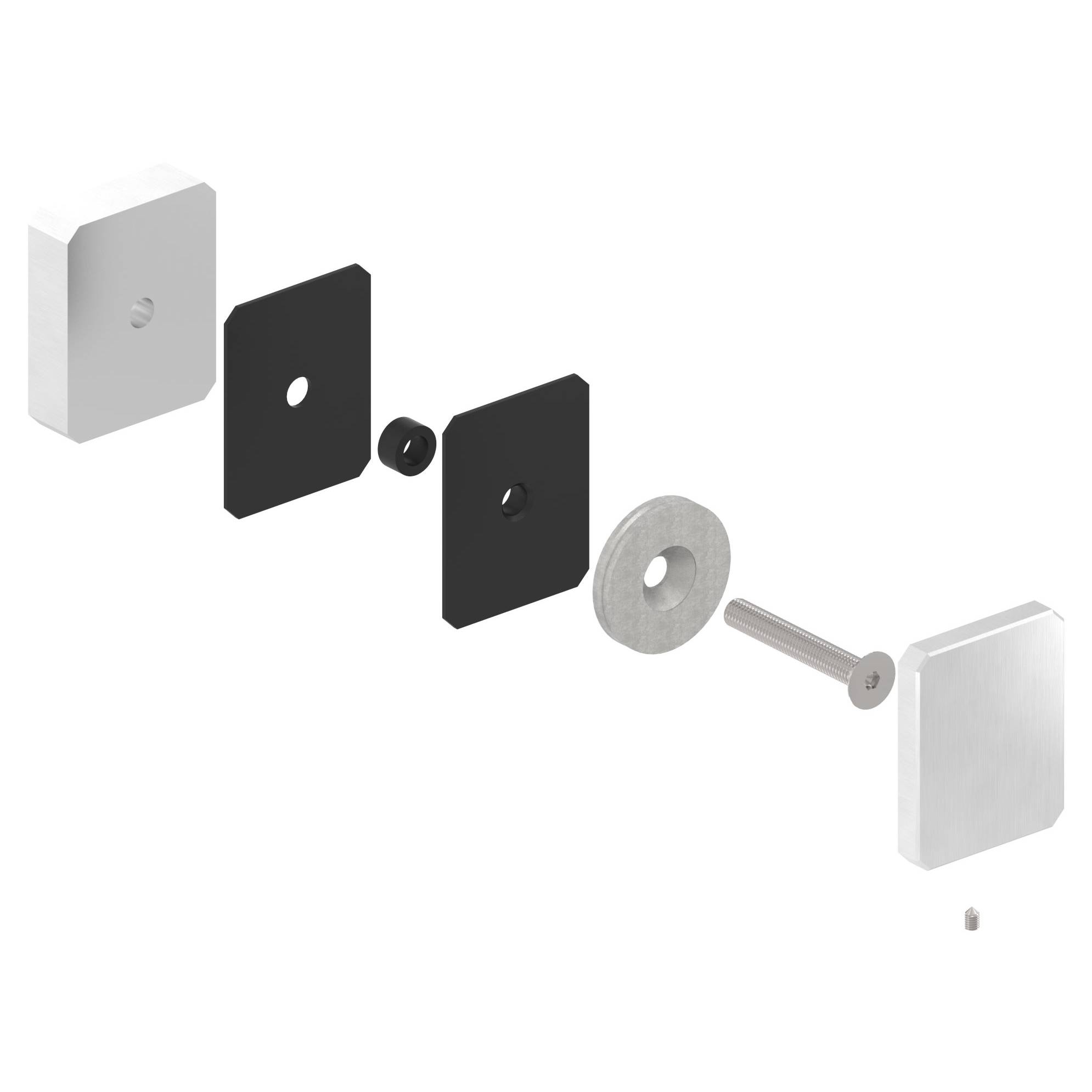

Glass point holder, 63x78mm, connection: flat, with countersunk screw M10x70, AISI304, glass hole: min. 16mm, clamping range 8.0 - 21.52mm, AISI304 incl. rubber
| Article number | 60199-240 |
| Weight in Kg | 0.685 |
| Length x Width x Height in mm | 78 x 65 x 70 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Connection |
flach |
Material |
V2A (1.4301) |
Certification |
mit AbP |
Diameter |
63x78mm |
Adjustability |
nein |
Surface |
geschliffen |
Clamping range |
8,00 - 9,52mm,
10,00 - 11,52mm,
12,00 - 13,52mm,
16,00 - 17,52mm,
20,00 - 21,52mm |
