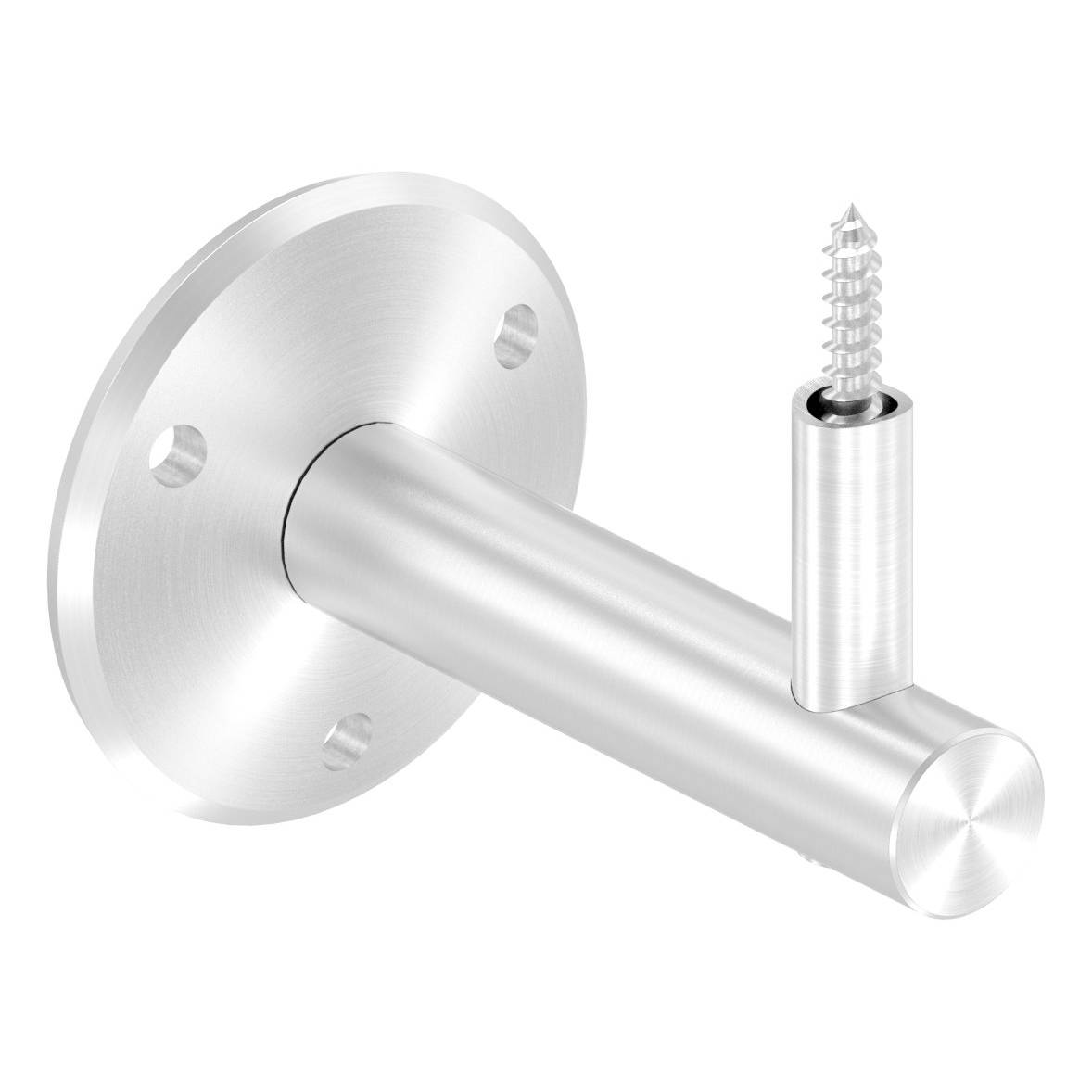

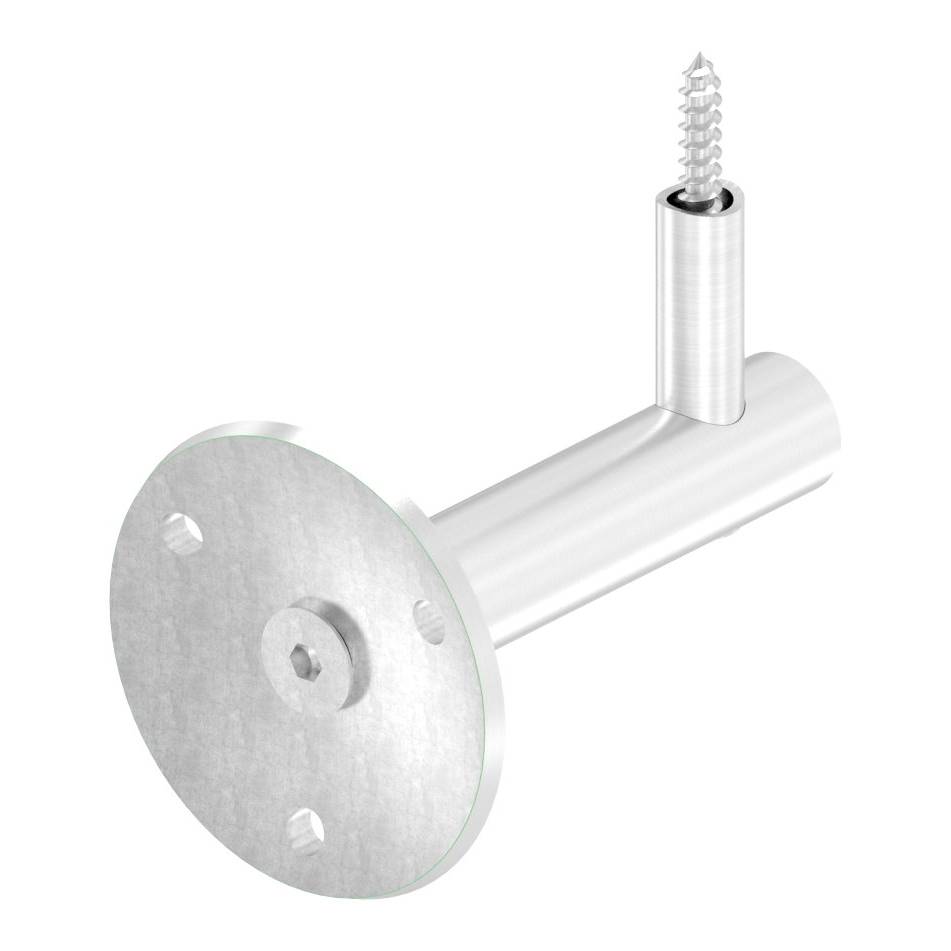

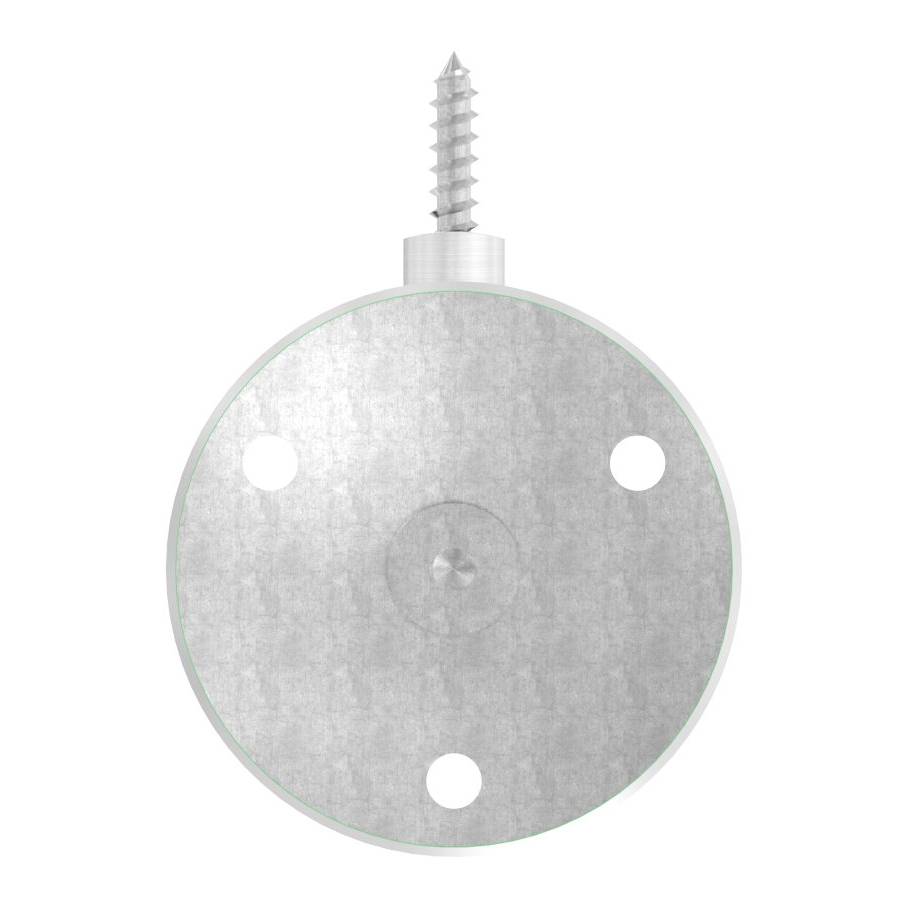

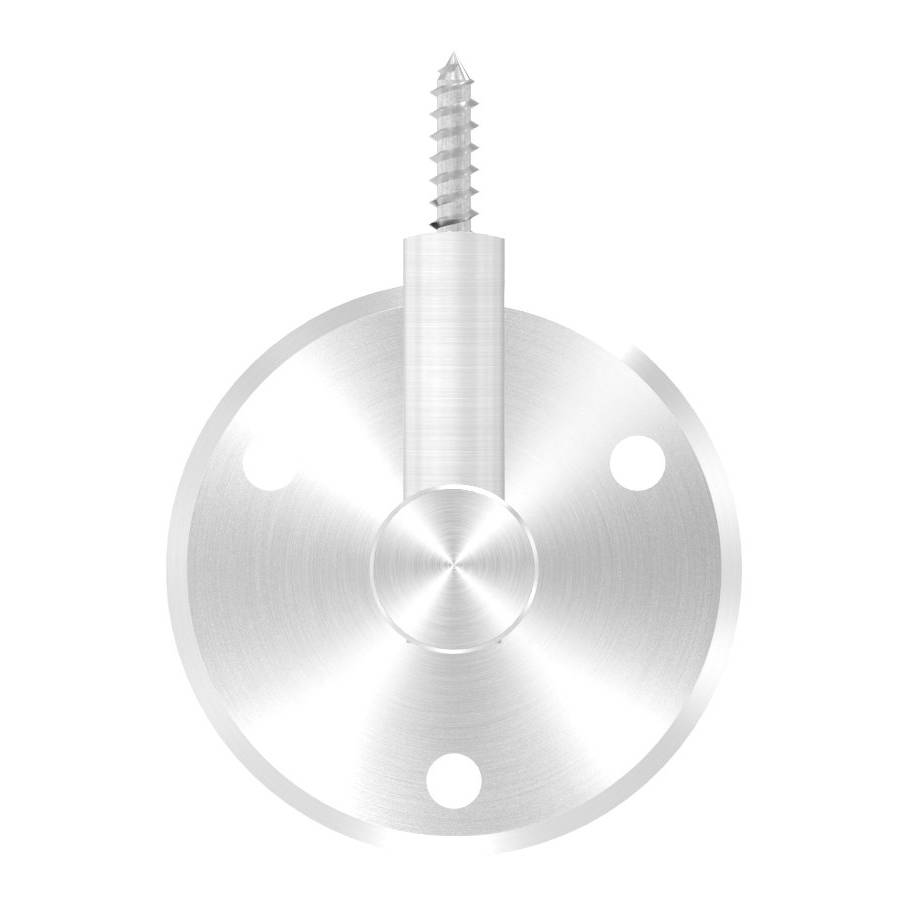

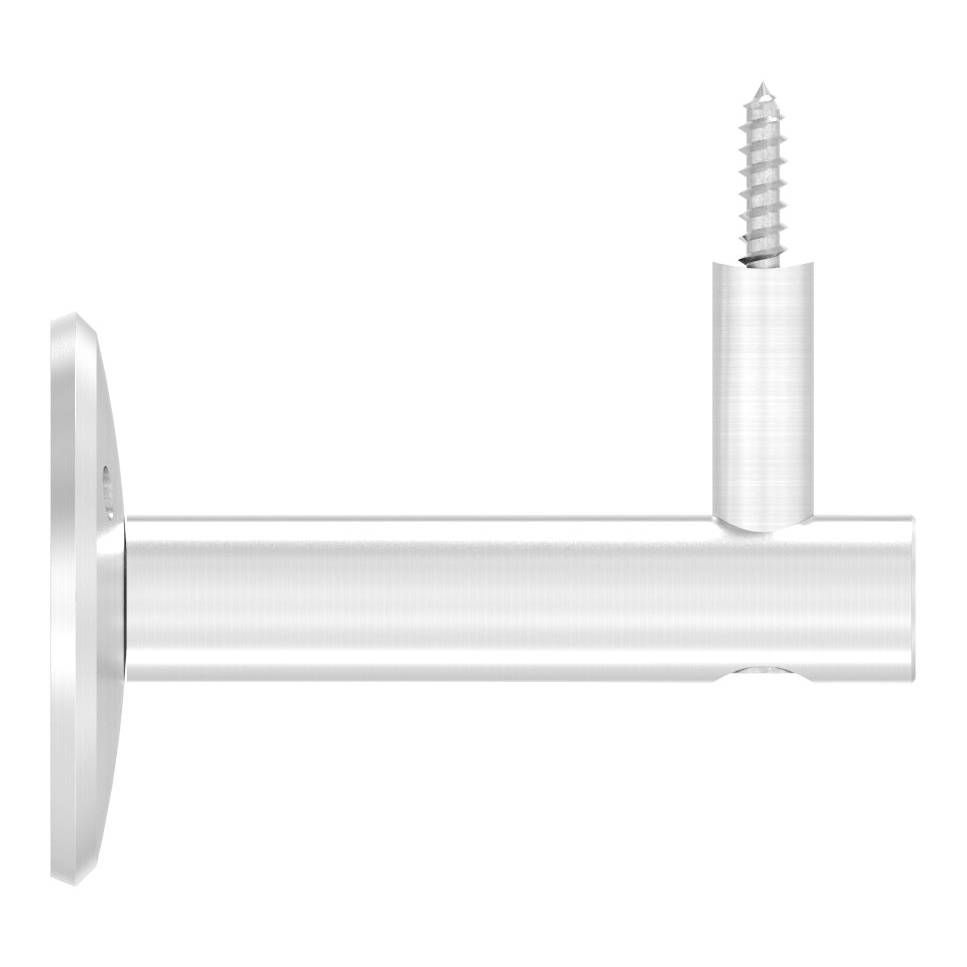

Handrail bracket for screwing on with wood screw (round bar and bracket screwed together), AISI304
Art-Nr.50196-240|Currently not available

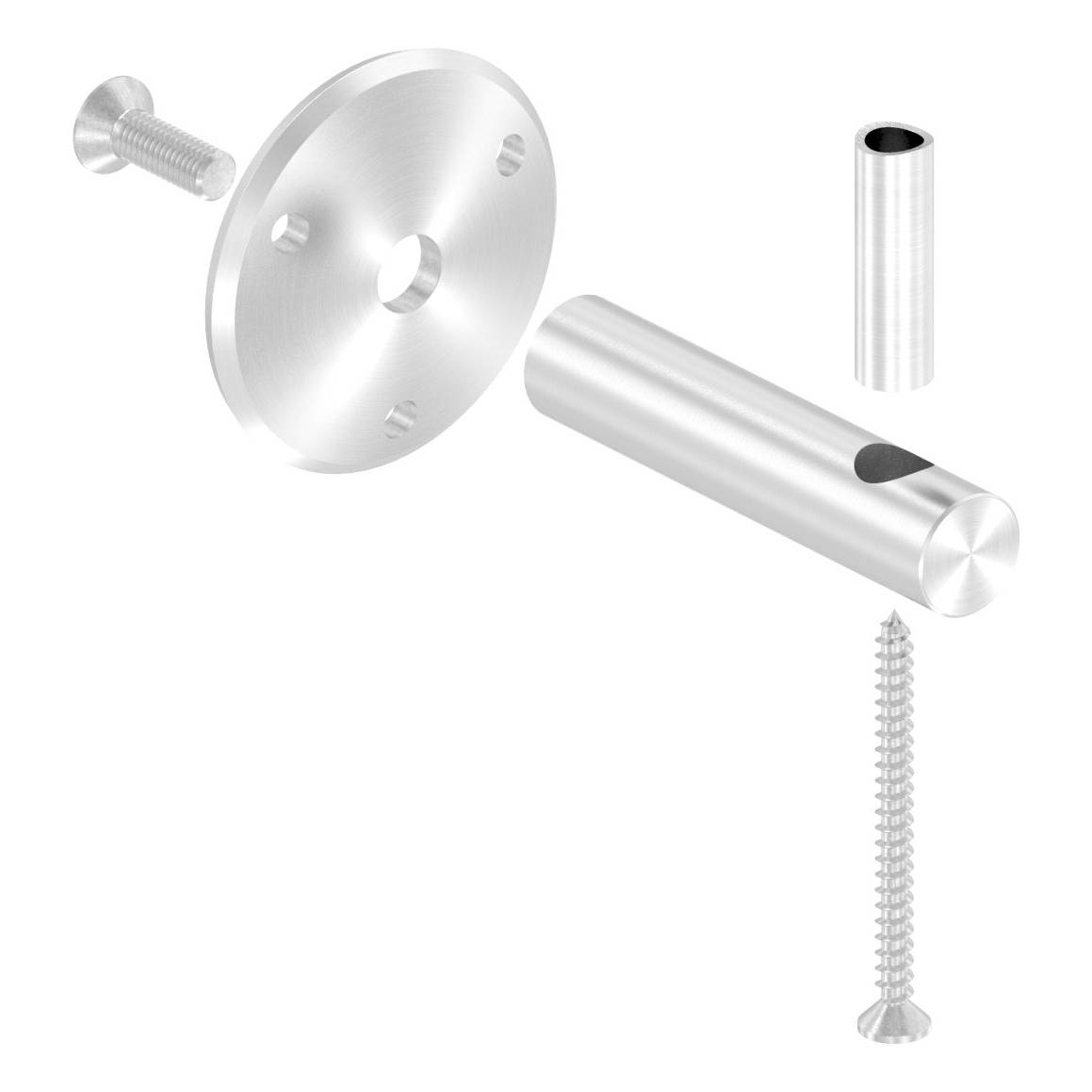

Handrail bracket for screwing on the handrail with M6 wood screw, 70x5mm curved round plate, 20mm bracket, wall distance 80mm, 3x6.5mm holes (round plate and bracket screwed together), AISI304
| Article number | 50196-240 |
| Weight in Kg | 0.375 |
| Length x Width x Height in mm | 102 x 100 x 23 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schrauben |
Number of mounting holes |
3 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
