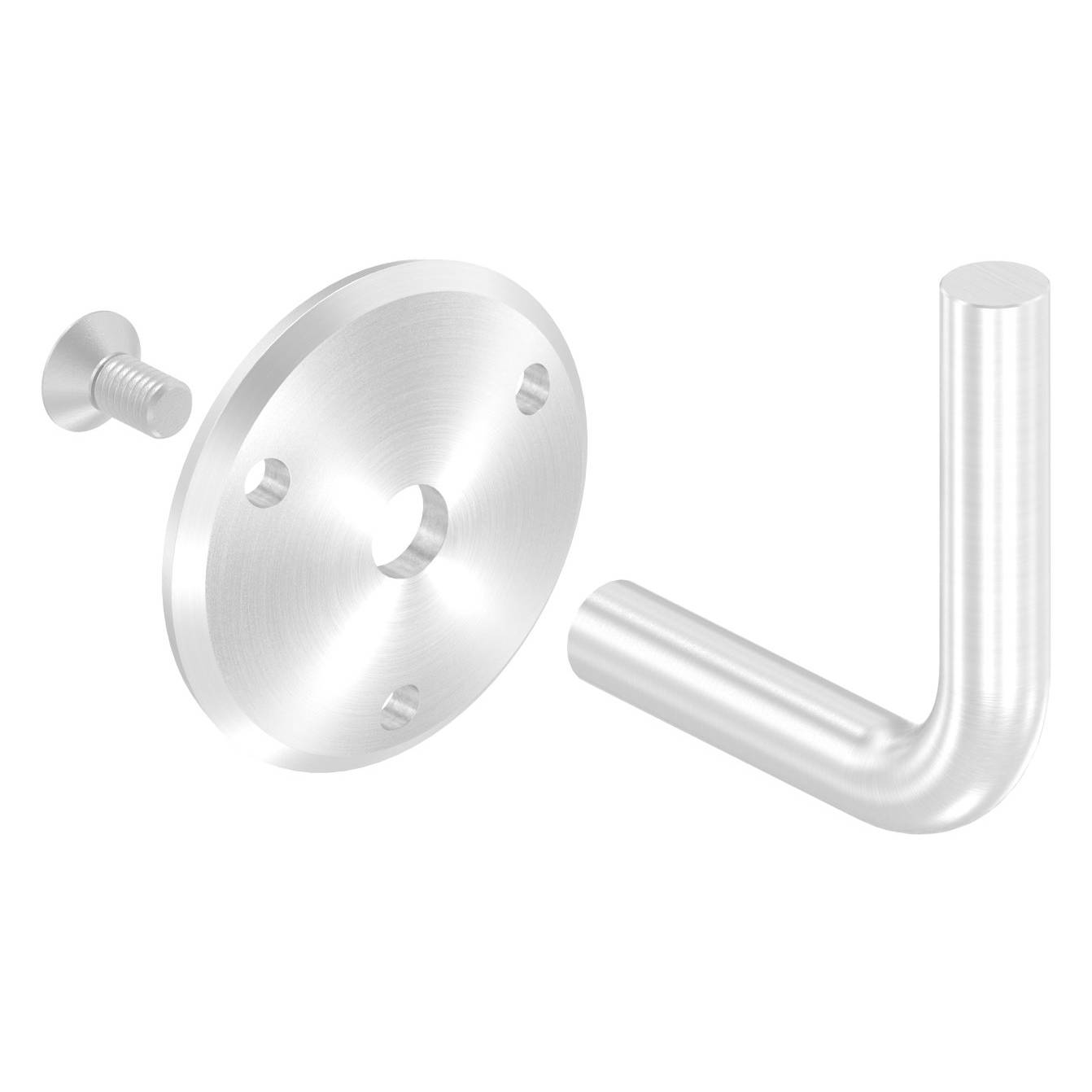

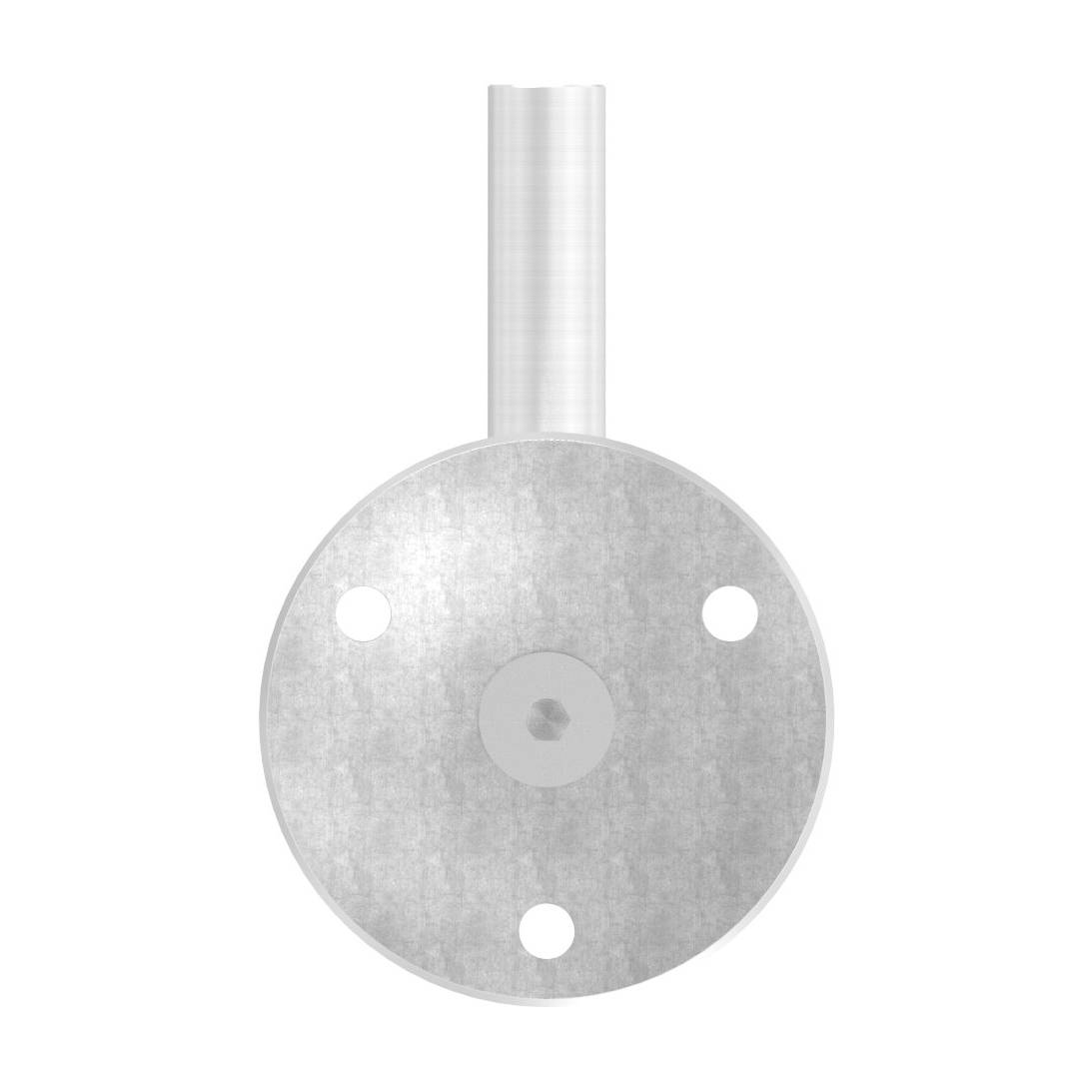

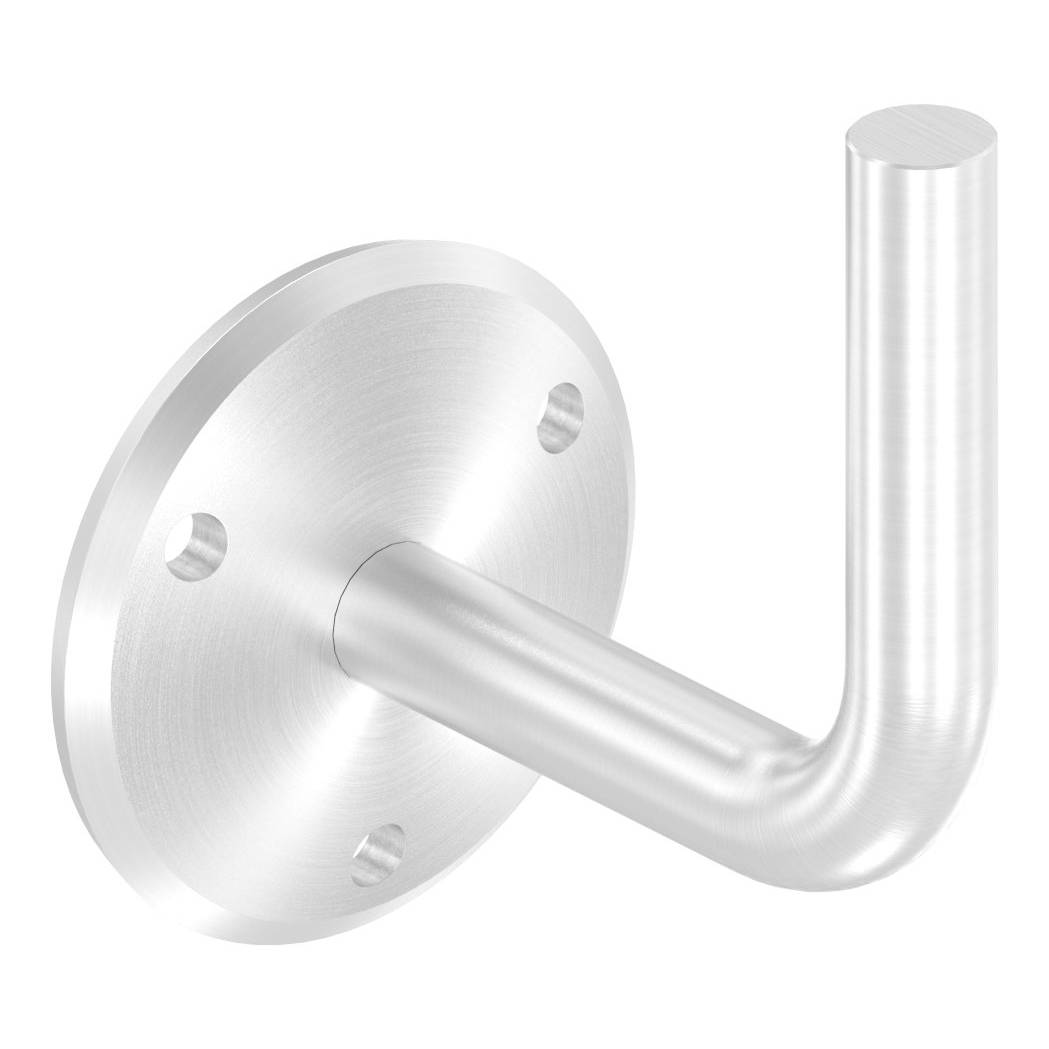

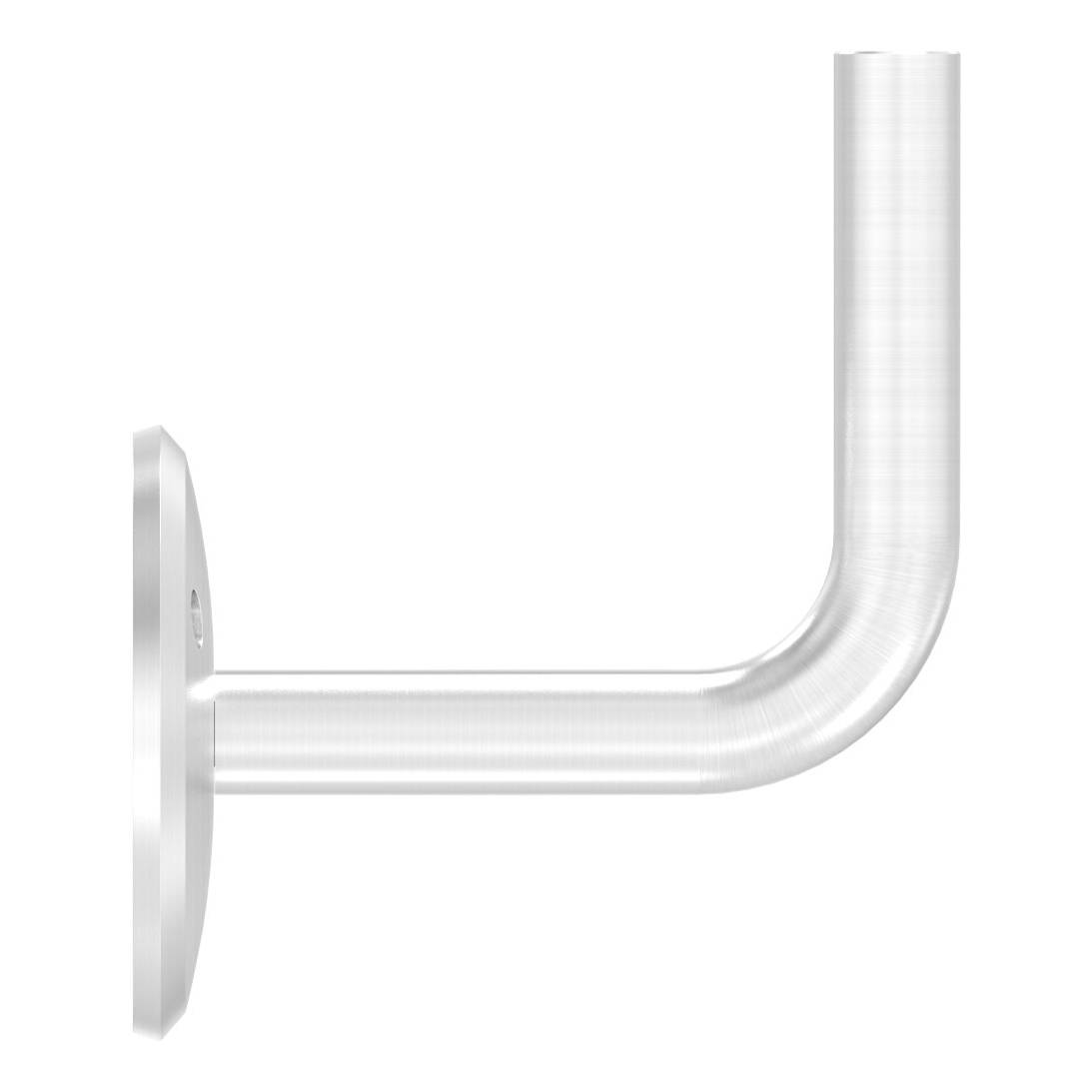

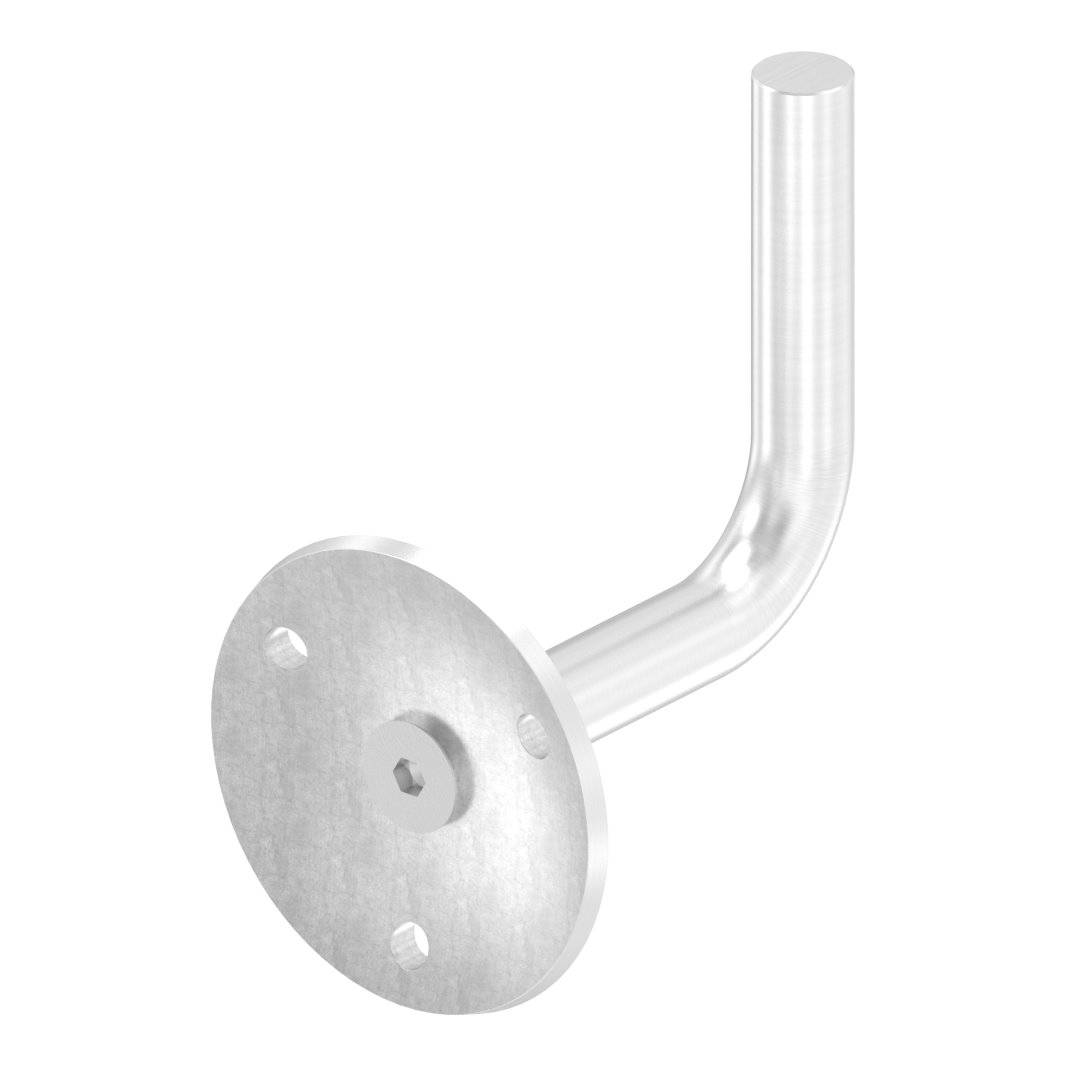

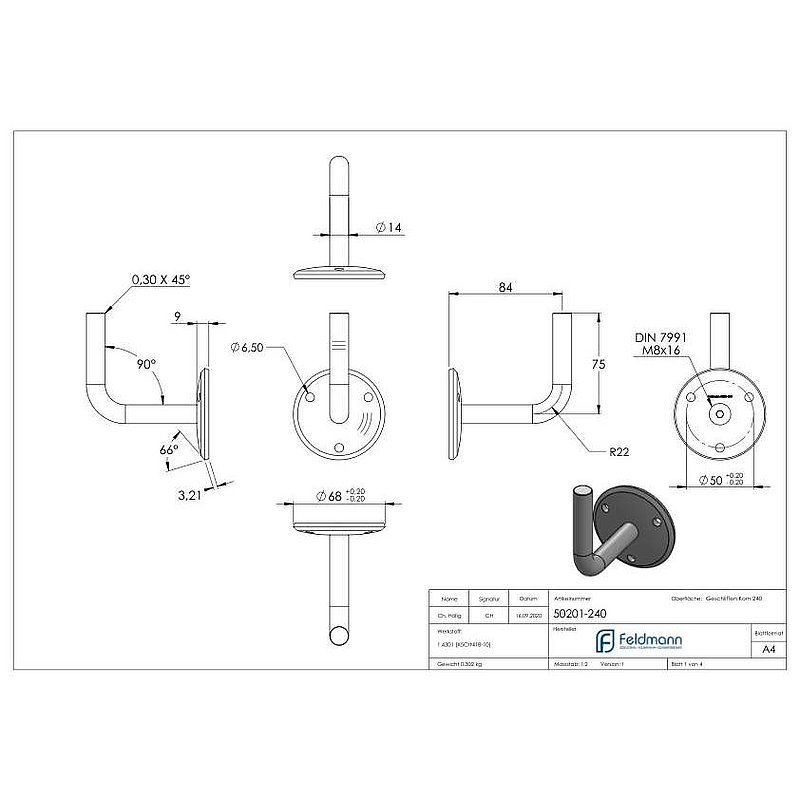

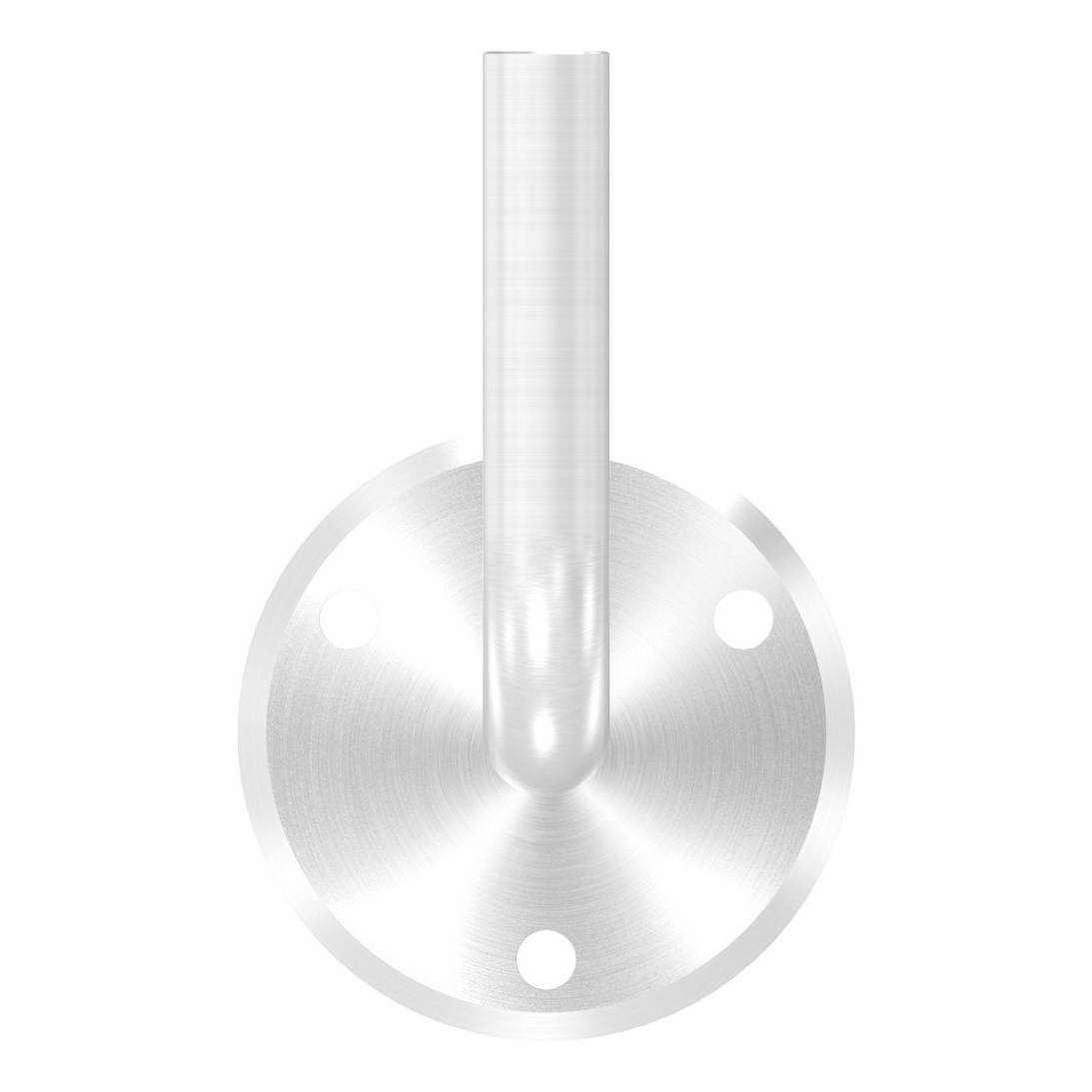

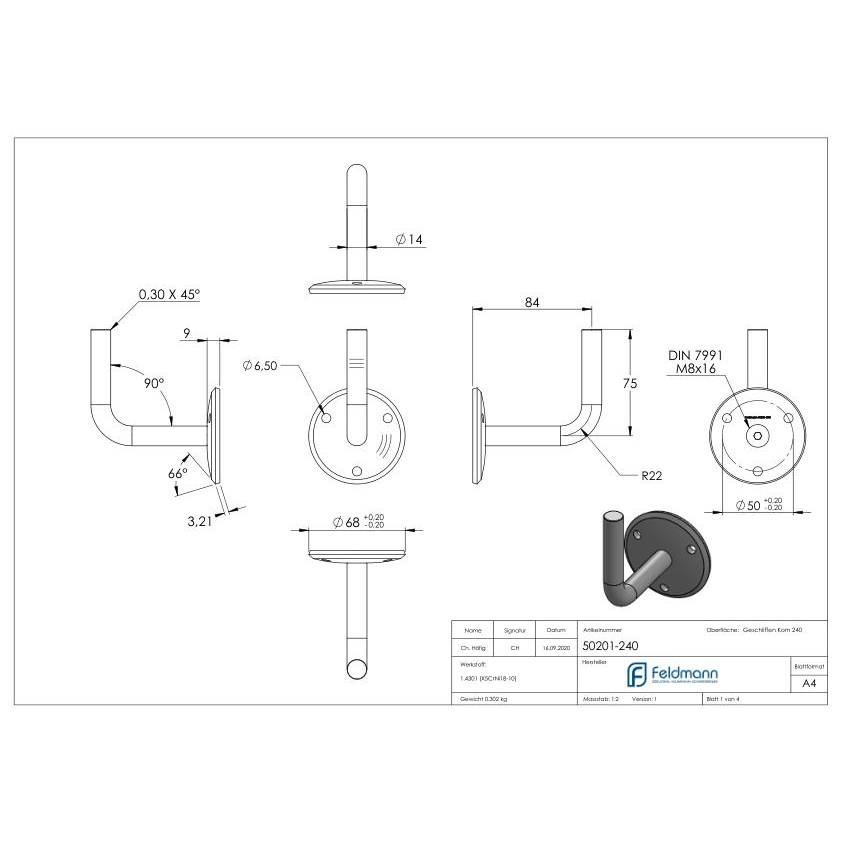

Handrail bracket for welding (round plate and bracket screwed together), AISI304
Art-Nr.50201-240|In stock
Handrail bracket for welding on the handrail, 70x5mm curved round plate, 14mm bracket, wall distance 84mm, 3x6.5mm holes (round plate and bracket screwed together), AISI304
| Article number | 50201-240 |
| Weight in Kg | 0.304 |
| Length x Width x Height in mm | 100 x 83 x 20 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schweißen |
Number of mounting holes |
3 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
14mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
