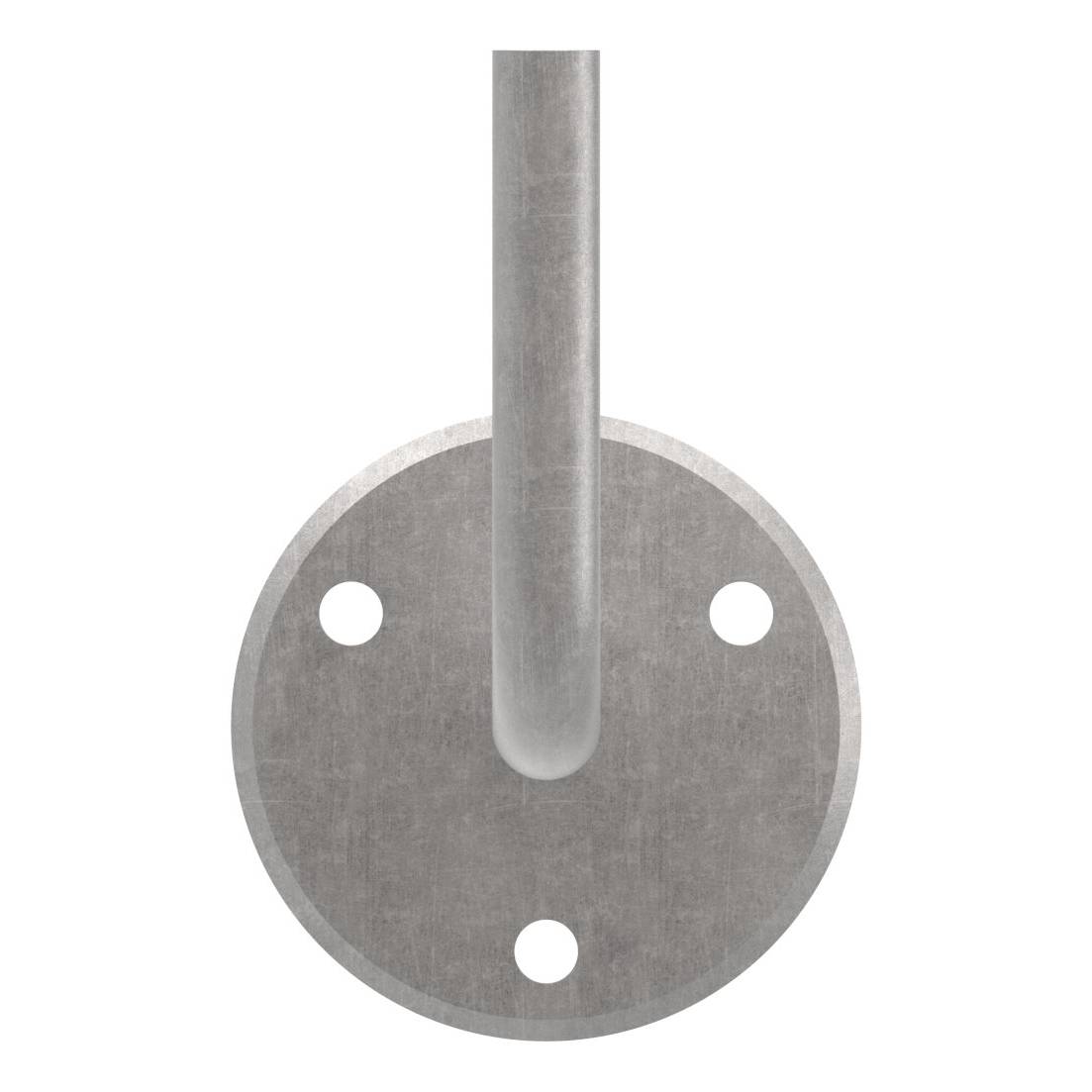

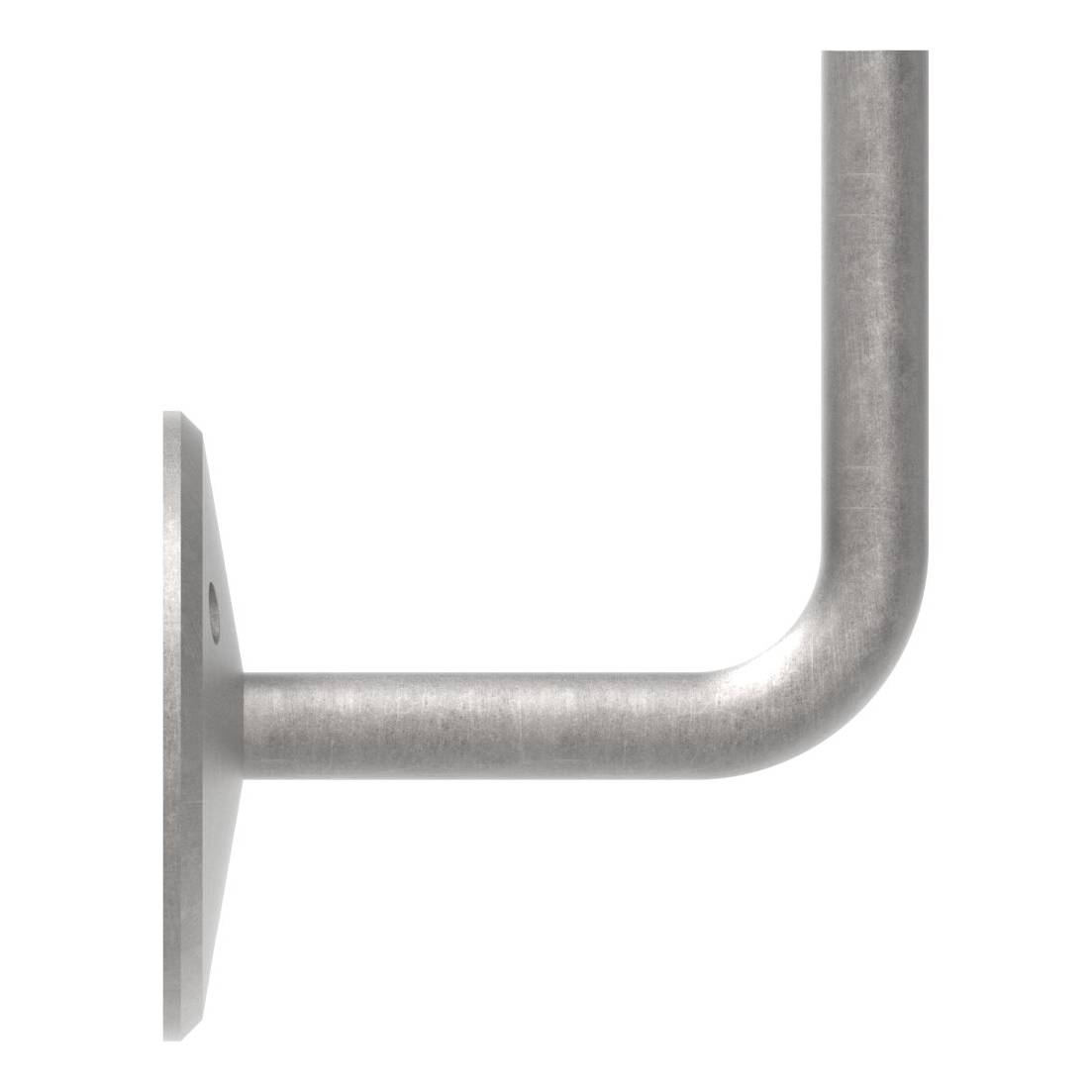

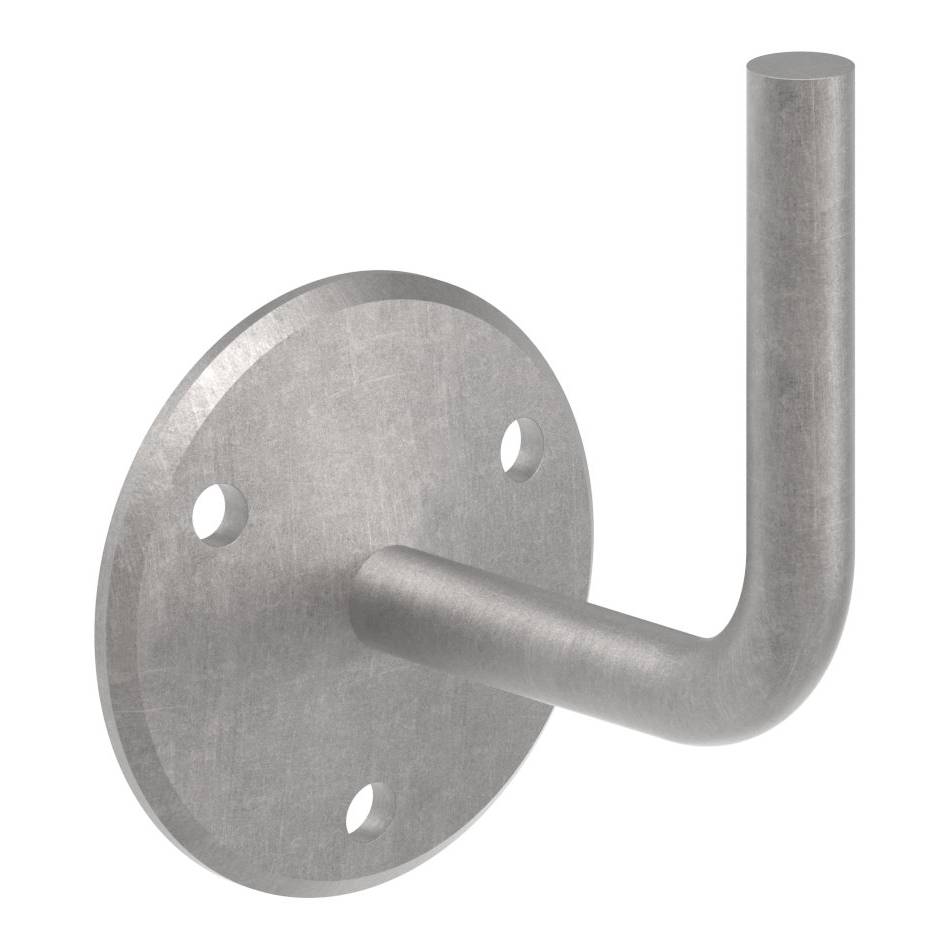

Handrail support with curved round plate, 70x5mm
Art-Nr.1460-I|In stock

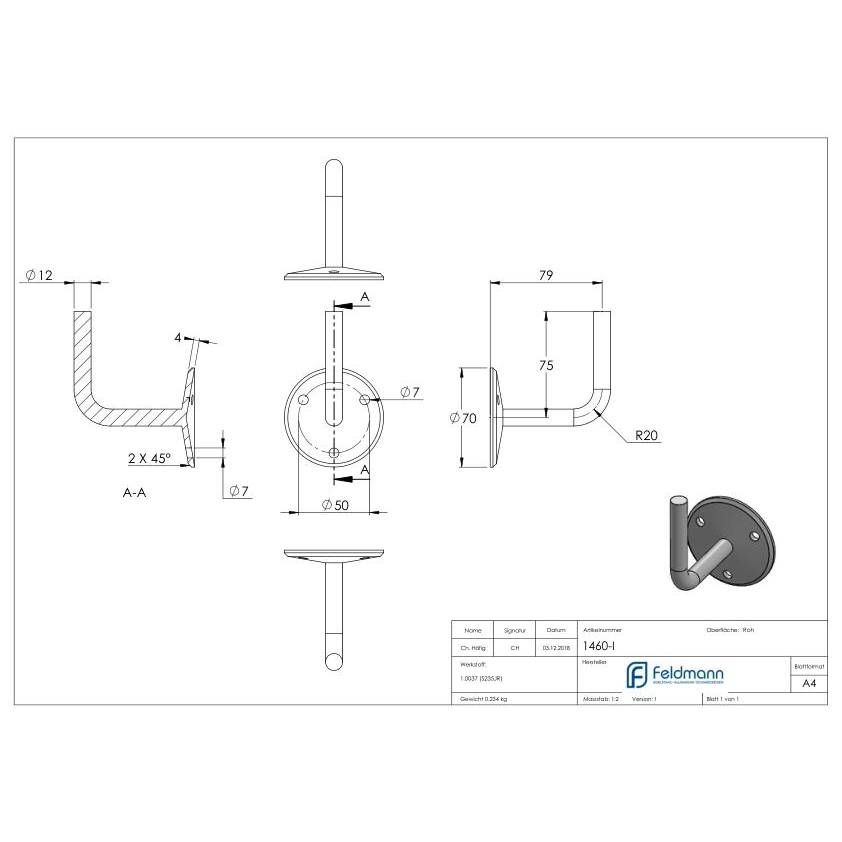

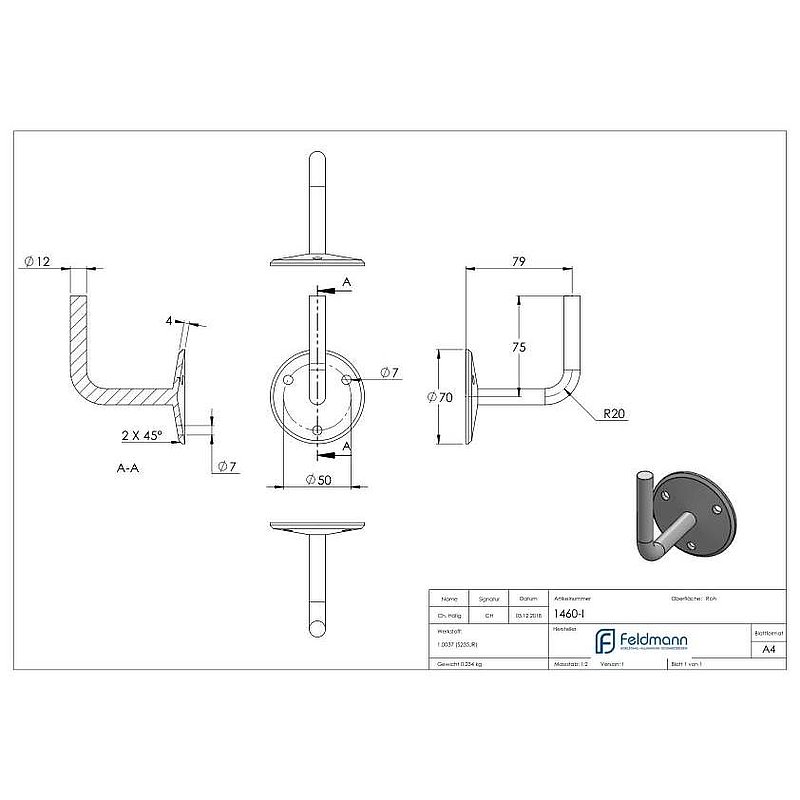

Handrail support with curved round plate, 70x5mm with chamfer, for welding on the handrail, bracket 12mm, wall distanceØ 79mm, fixing holes 6mm
| Article number | 1460-I |
| Weight in Kg | 0.23 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Handrail mounting |
zum Schweißen |
Number of mounting holes |
3 Bohrungen |
Pin diameter |
12mm |
Handrail mount |
Ø 42,4mm,
Ø 48,3mm,
flach,Ø 33,7mm |
