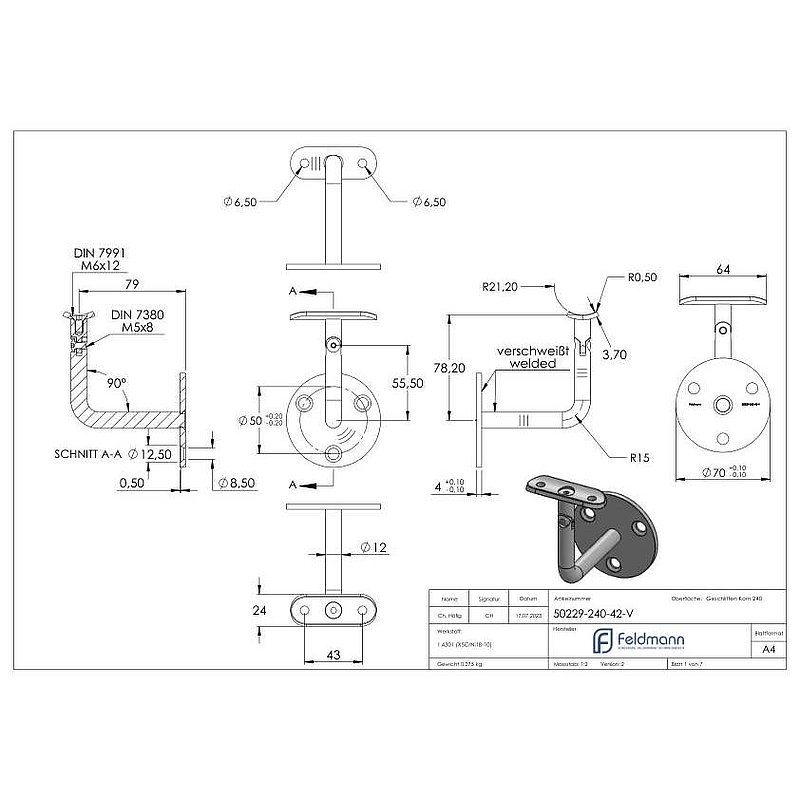

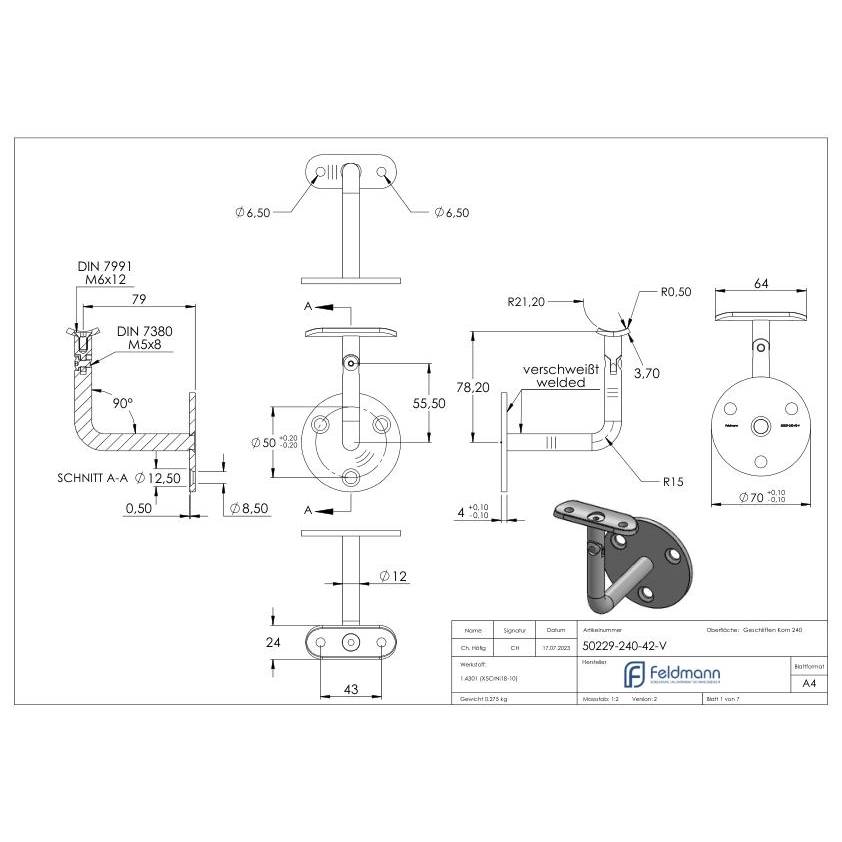

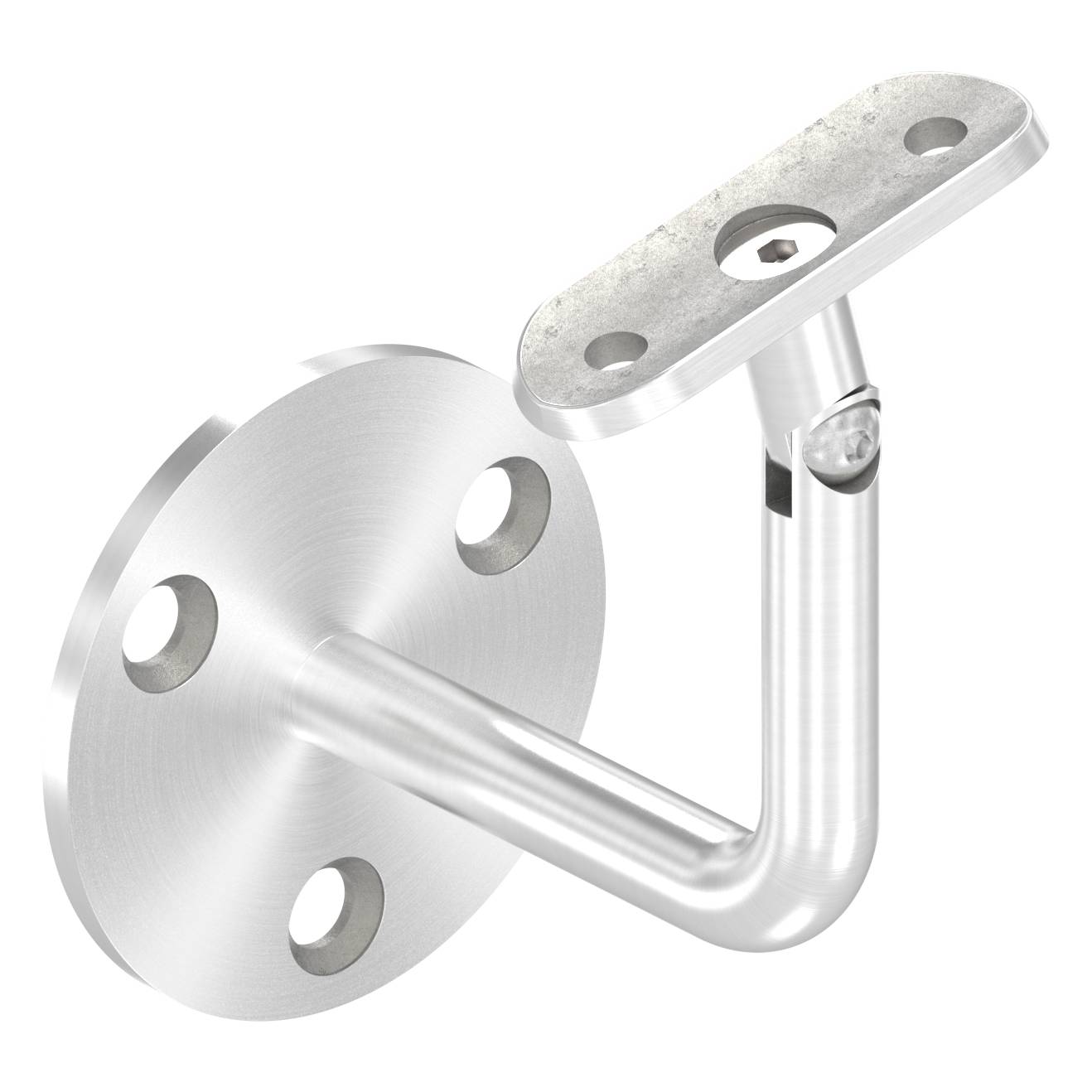

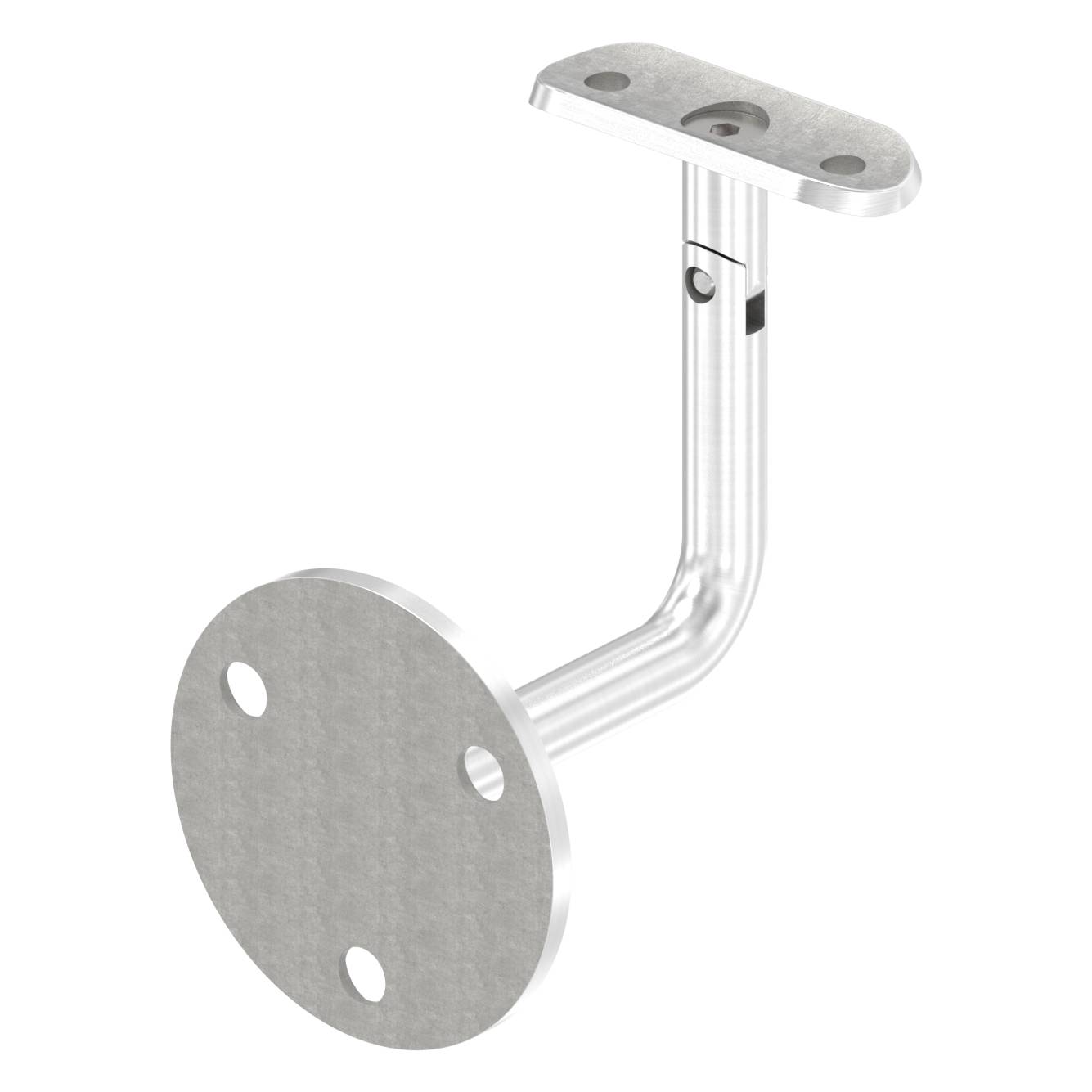

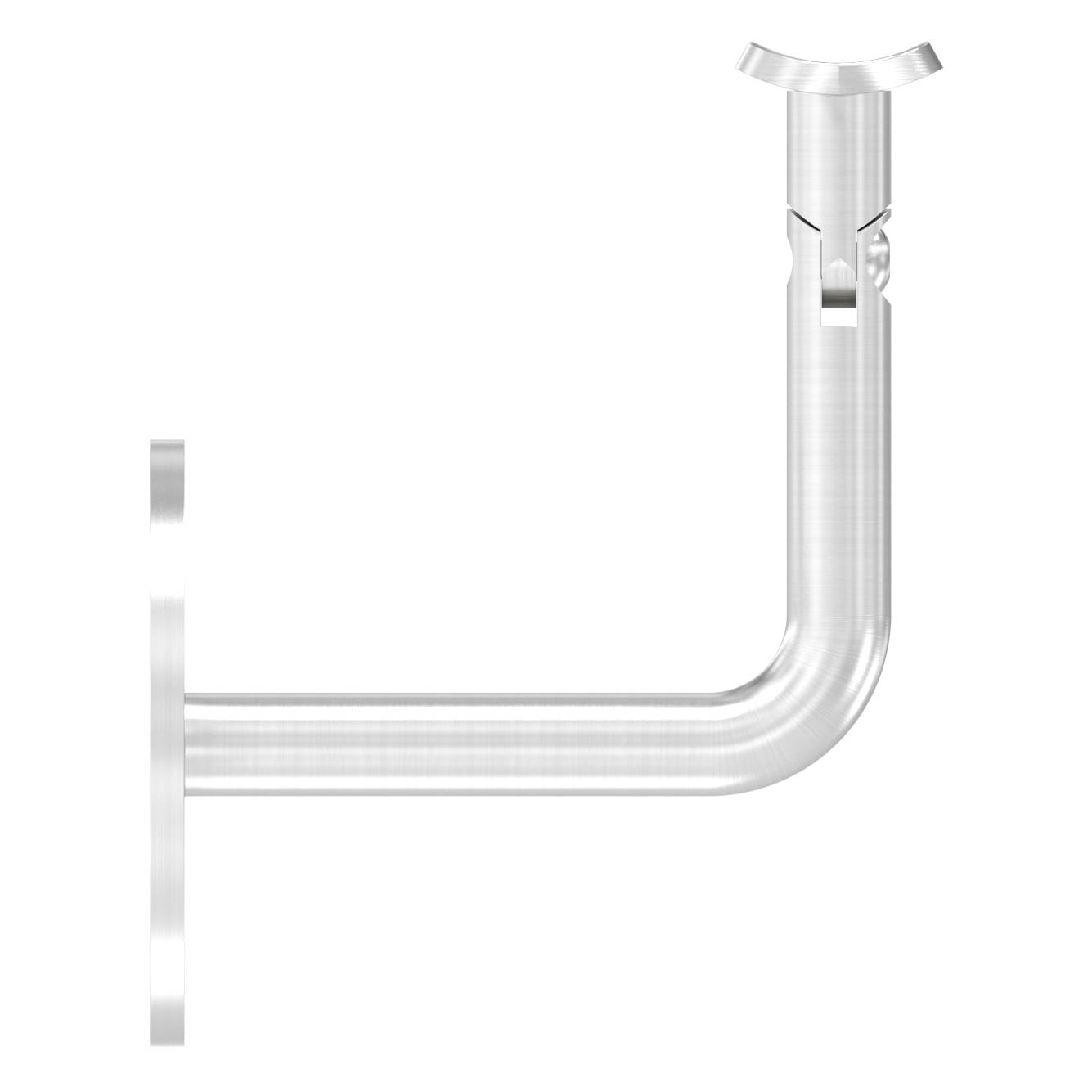

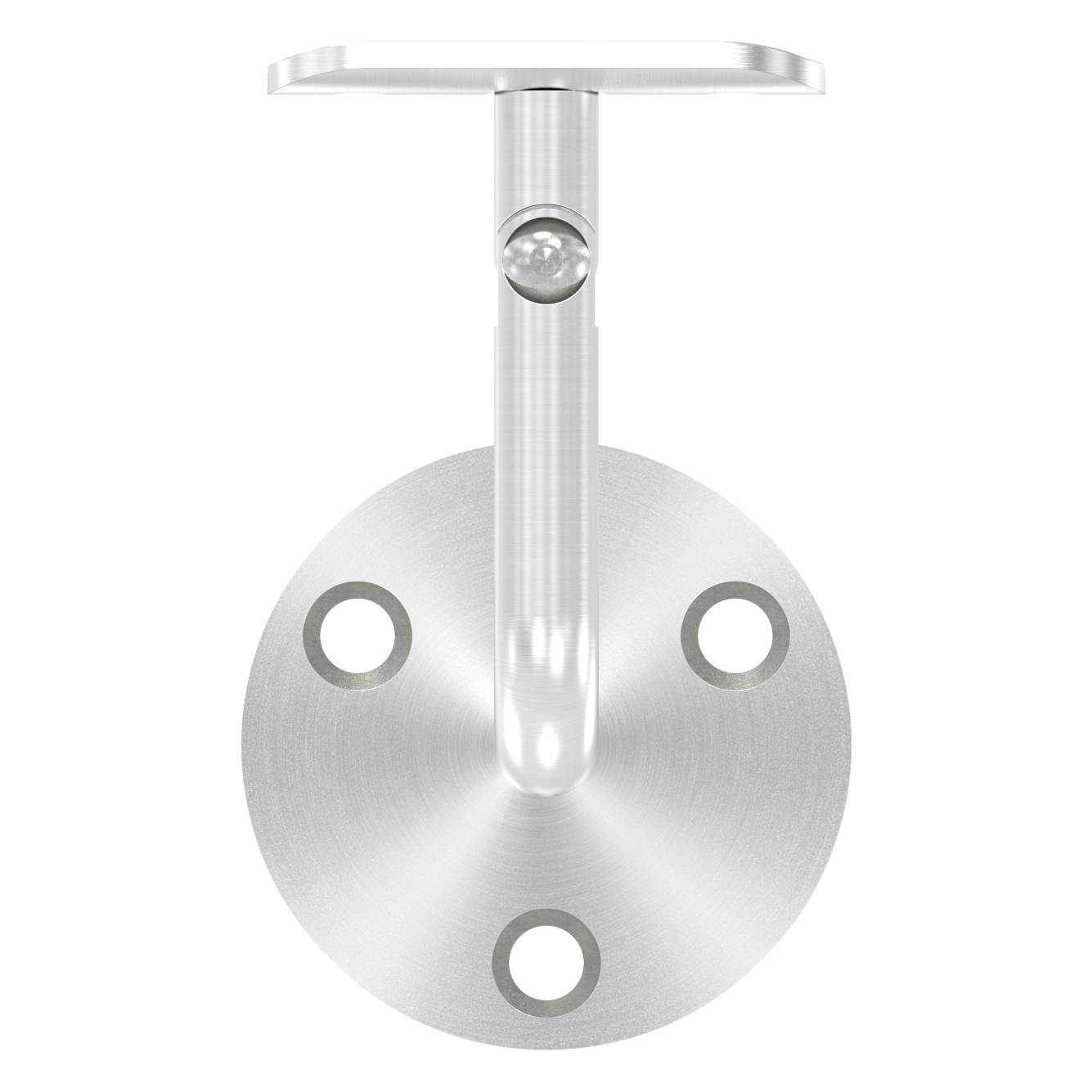

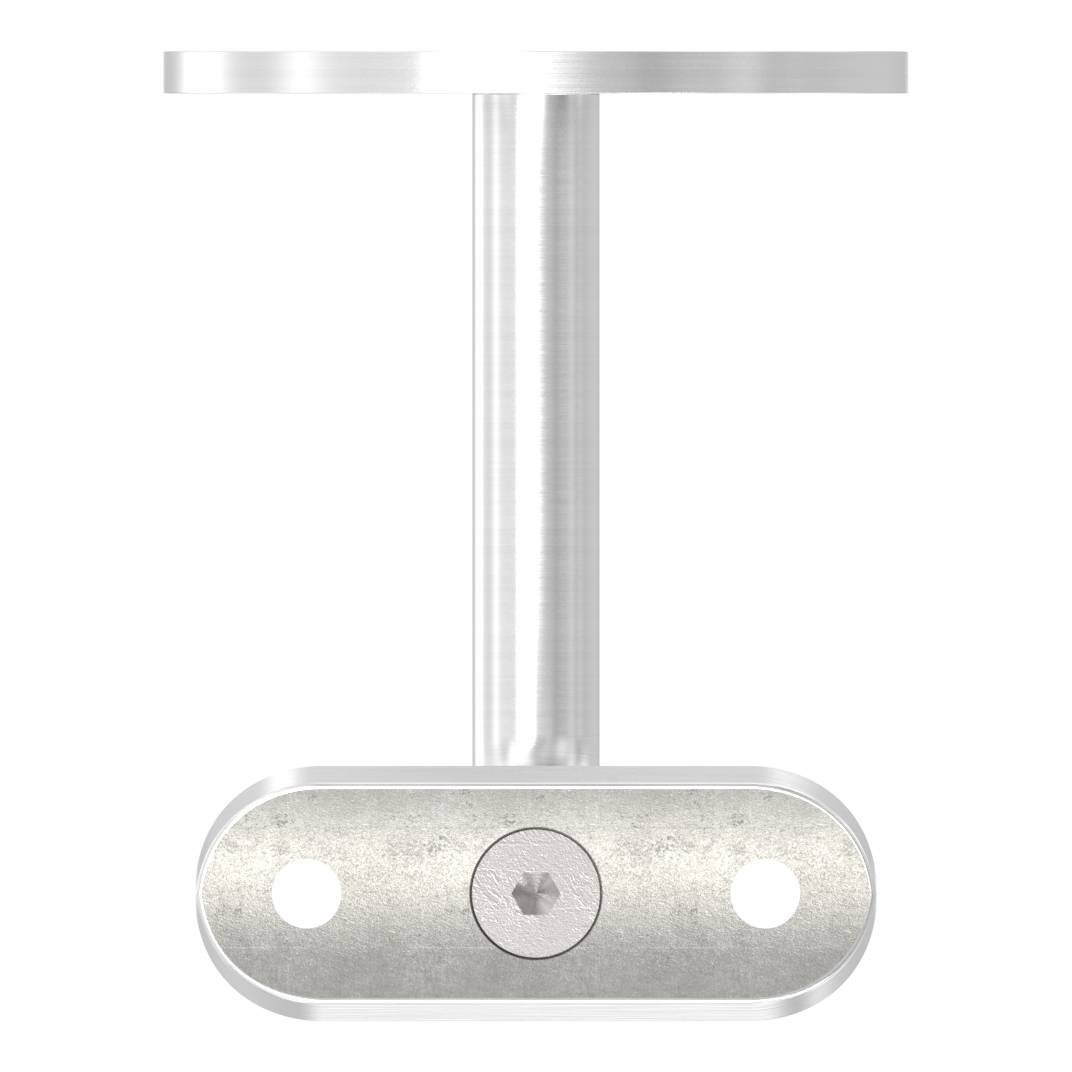

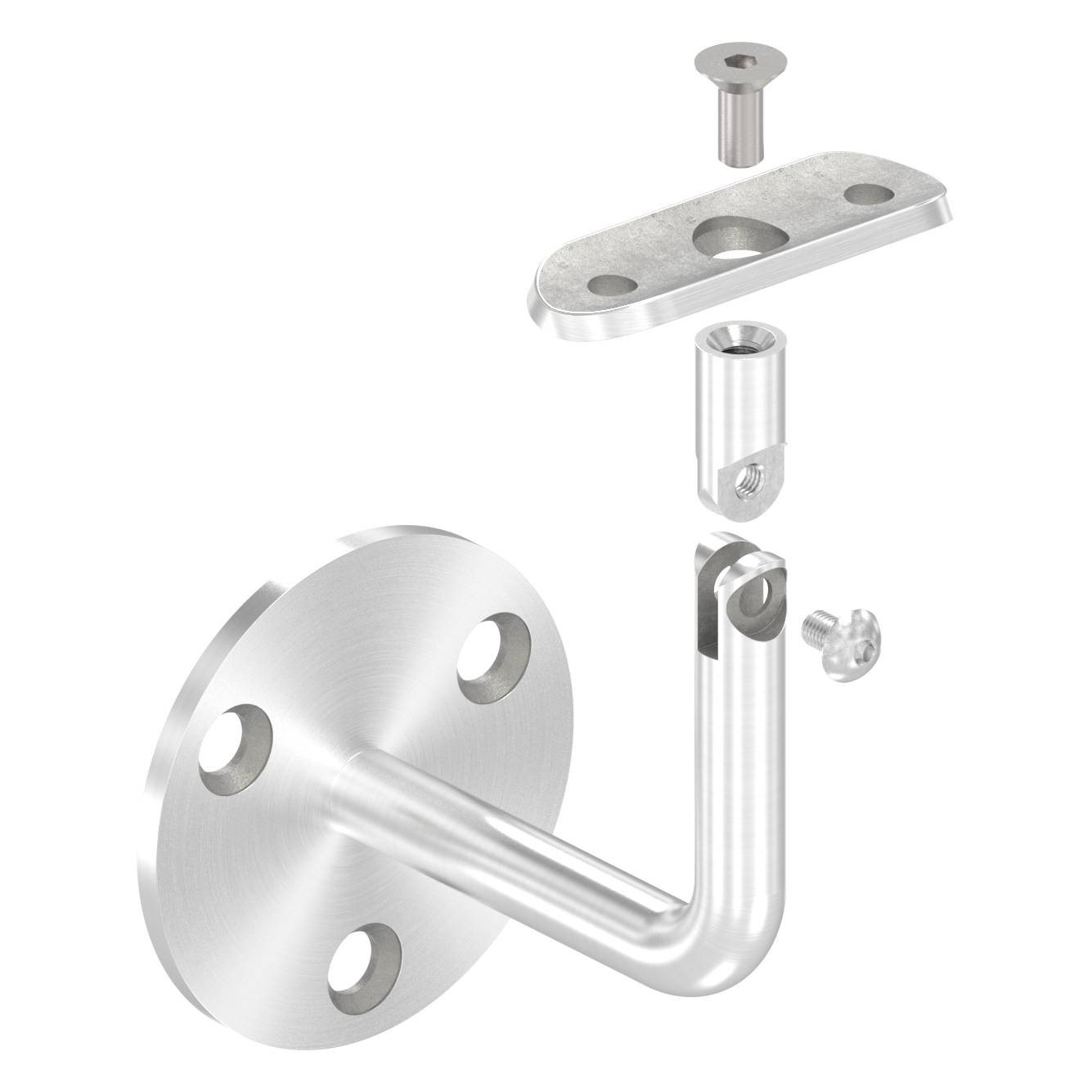

handrial holder with plate 42,4mm
Art-Nr.50229-240-42-V|In stock
handrail holder with plate 42,4mm (replaceable), plate 70 x 4mm with 3x boreholes Ø 8,5mm downcast M6, hinge elbow 12mm, wall distance 79mm, handrail plate and backplate welded, AISI304
| Article number | 50229-240-42-V |
| Weight in Kg | 0.276 |
| Length x Width x Height in mm | 116 x 71 x 83 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Handrail mounting |
zum Schrauben |
Number of mounting holes |
3 Bohrungen |
Cover rosette |
nein |
Cable feed-through |
nein |
Mounting location |
Wand |
Pin diameter |
12mm |
Surface |
geschliffen |
Handrail mount |
Ø 42,4mm |
