Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304
Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304

Screw-on handrail bracket, pan-head screw (round bar and bracket screwed together), AISI304

Art-Nr.50195-240|In stock
Product description

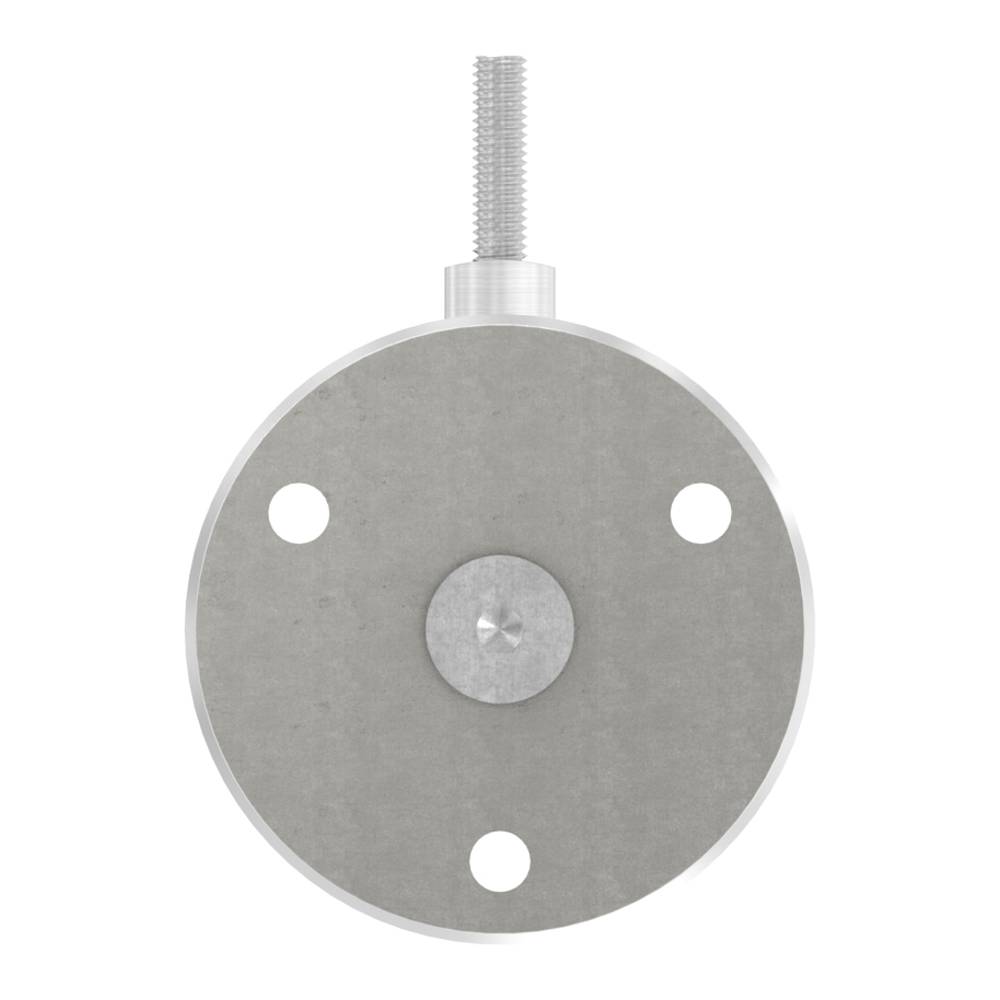

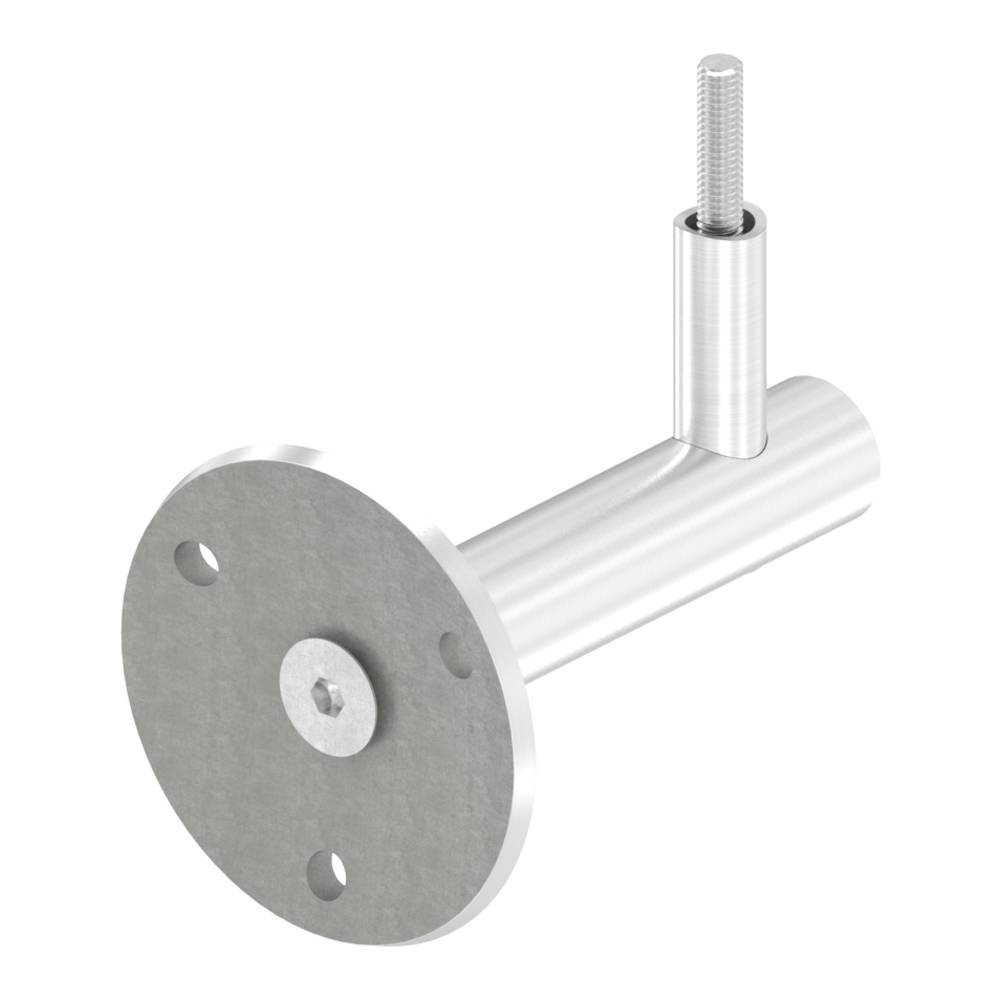

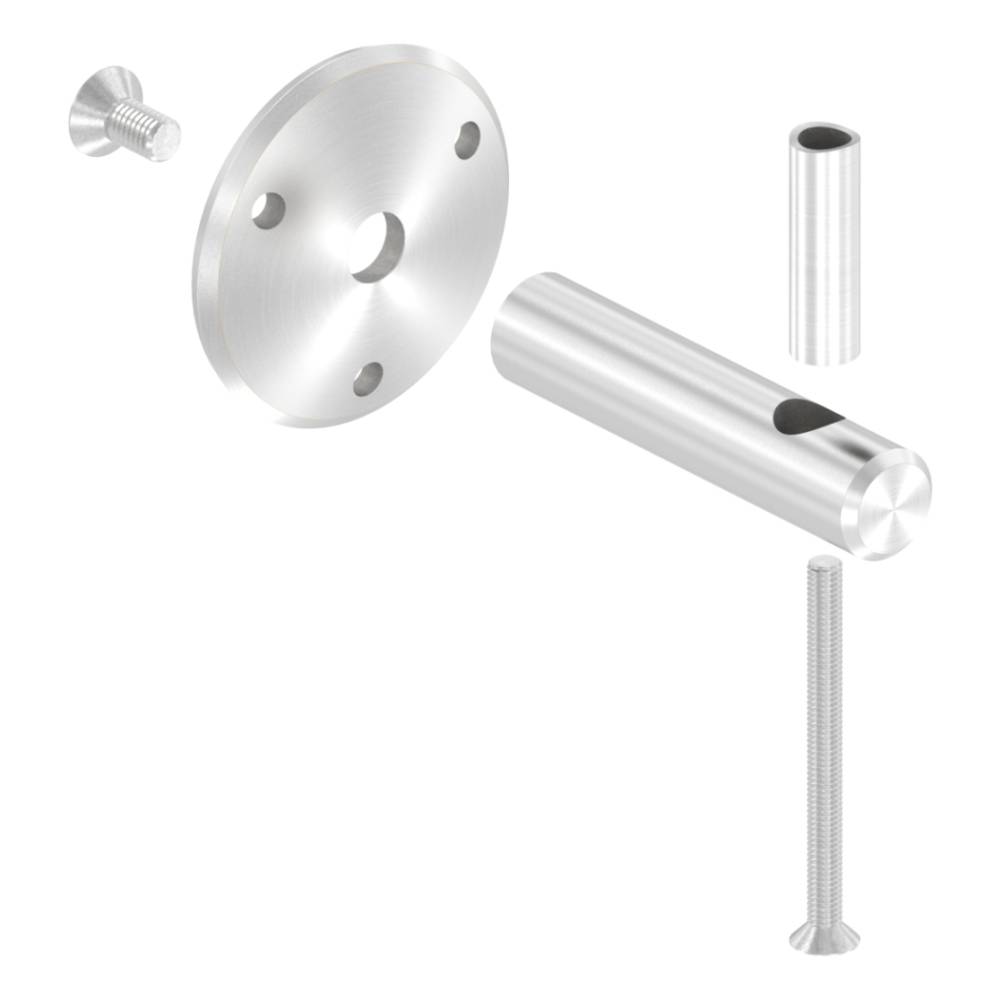

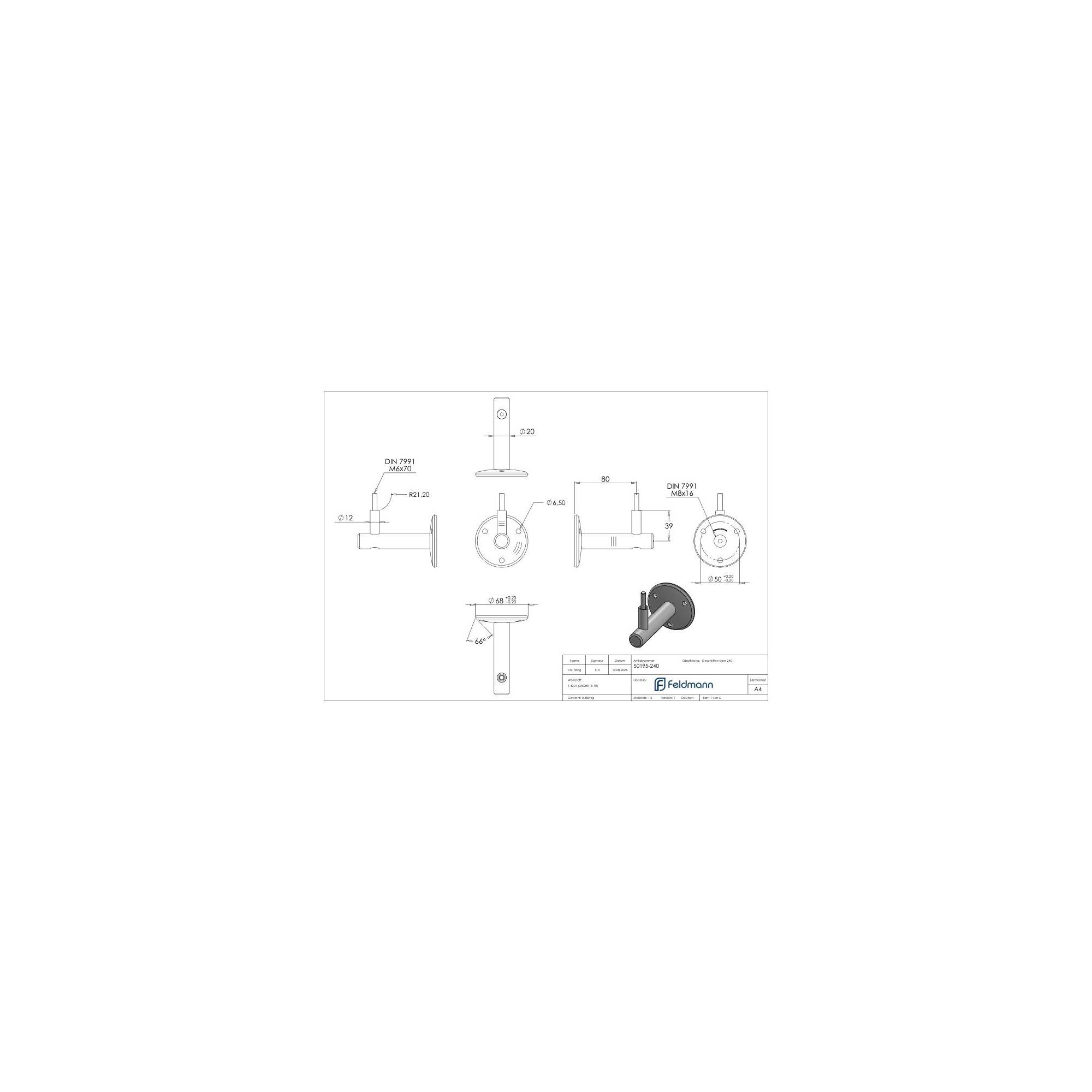

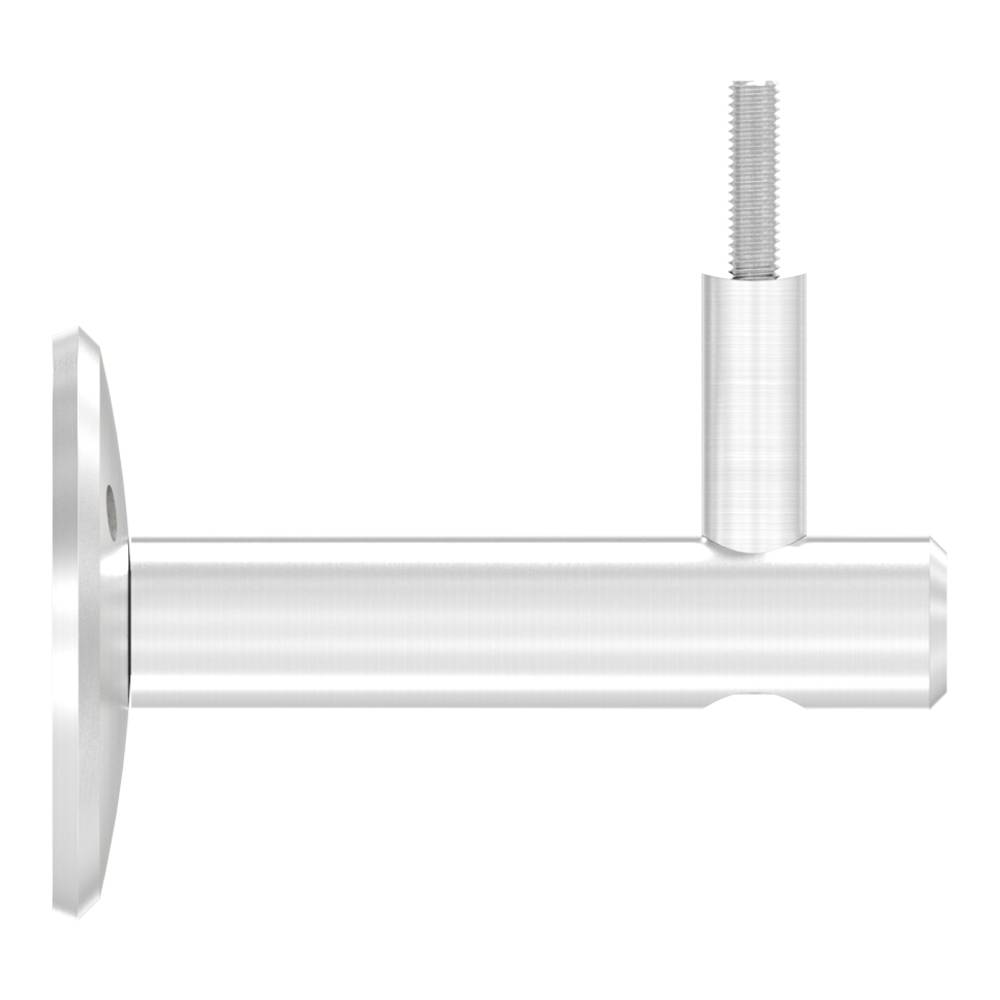

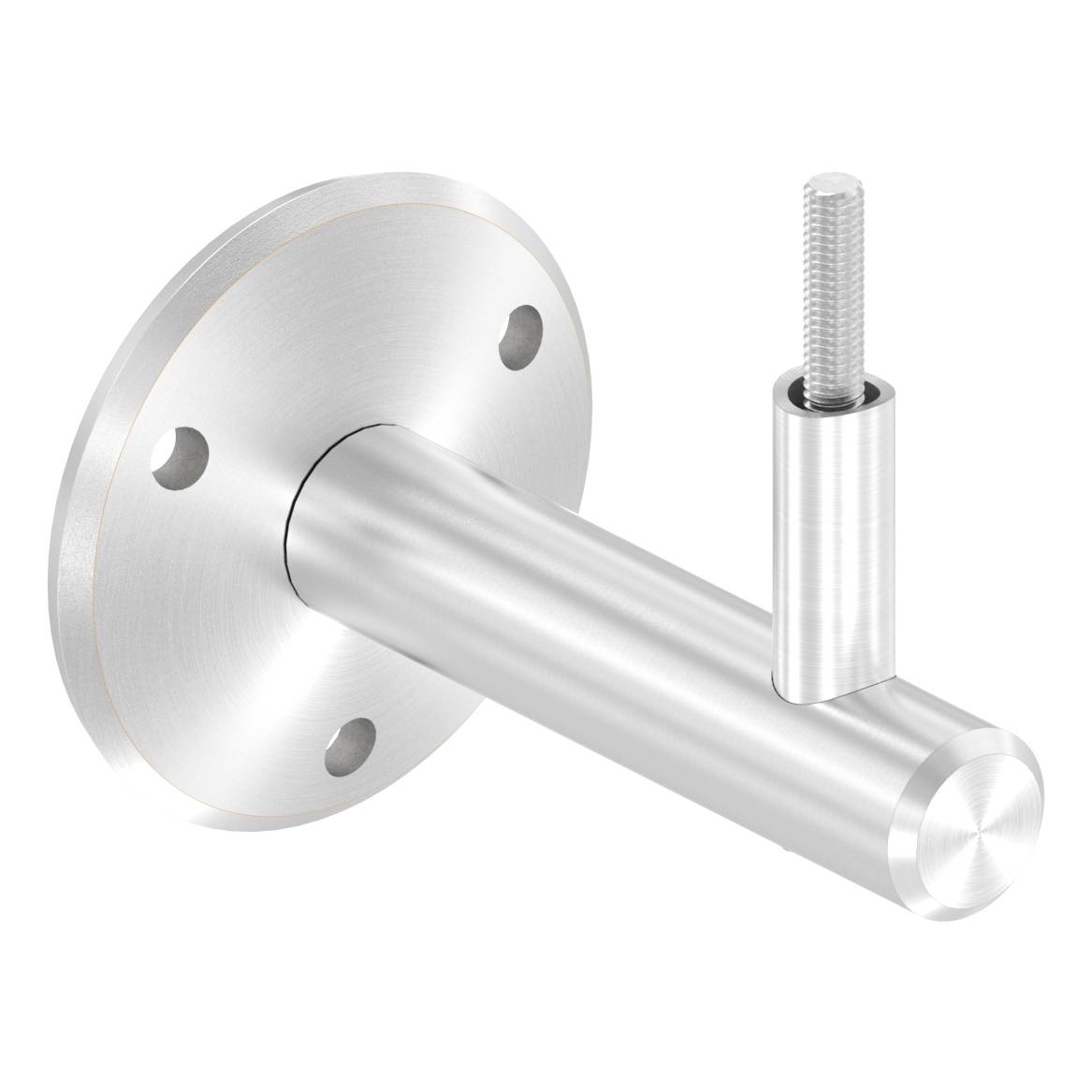

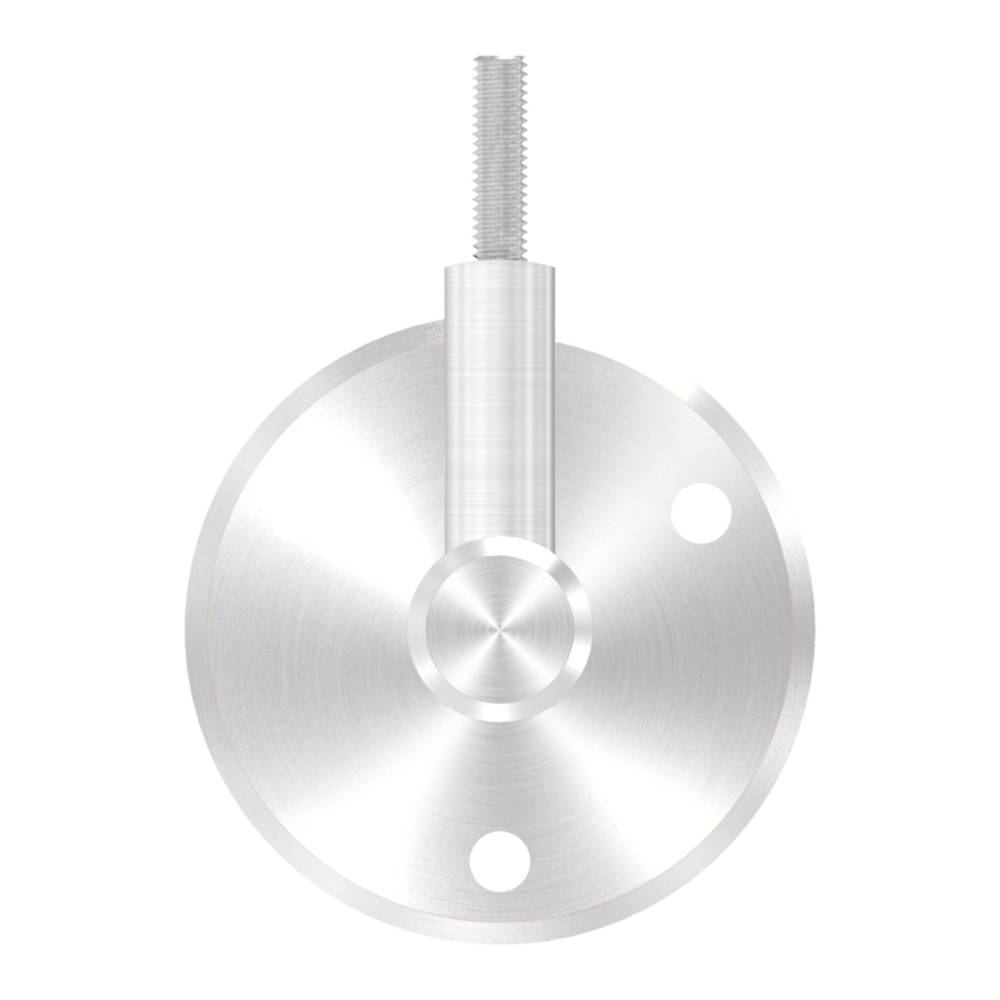

Handrail bracket for screwing on the handrail with pan-head screw M6, round 70x5mm curved, bracket 20mm, wall distance 80mm, 3x6.5mm holes (round and bracket screwed together), AISI304

Article number50195-240
Weight in Kg0.376
Length x Width x Height in mm94 x 91 x 23
UnitPiece
Minimum Purchase1 Piece
Material
V2A (1.4301)
Handrail mounting
zum Schrauben
Number of mounting holes
3 Bohrungen
Cover rosette
nein
Cable feed-through
nein
Mounting location
Wand
Pin diameter
12mm
Surface
geschliffen
Handrail mount
Ø 42,4mm, Ø 48,3mm, flach,Ø 33,7mm
