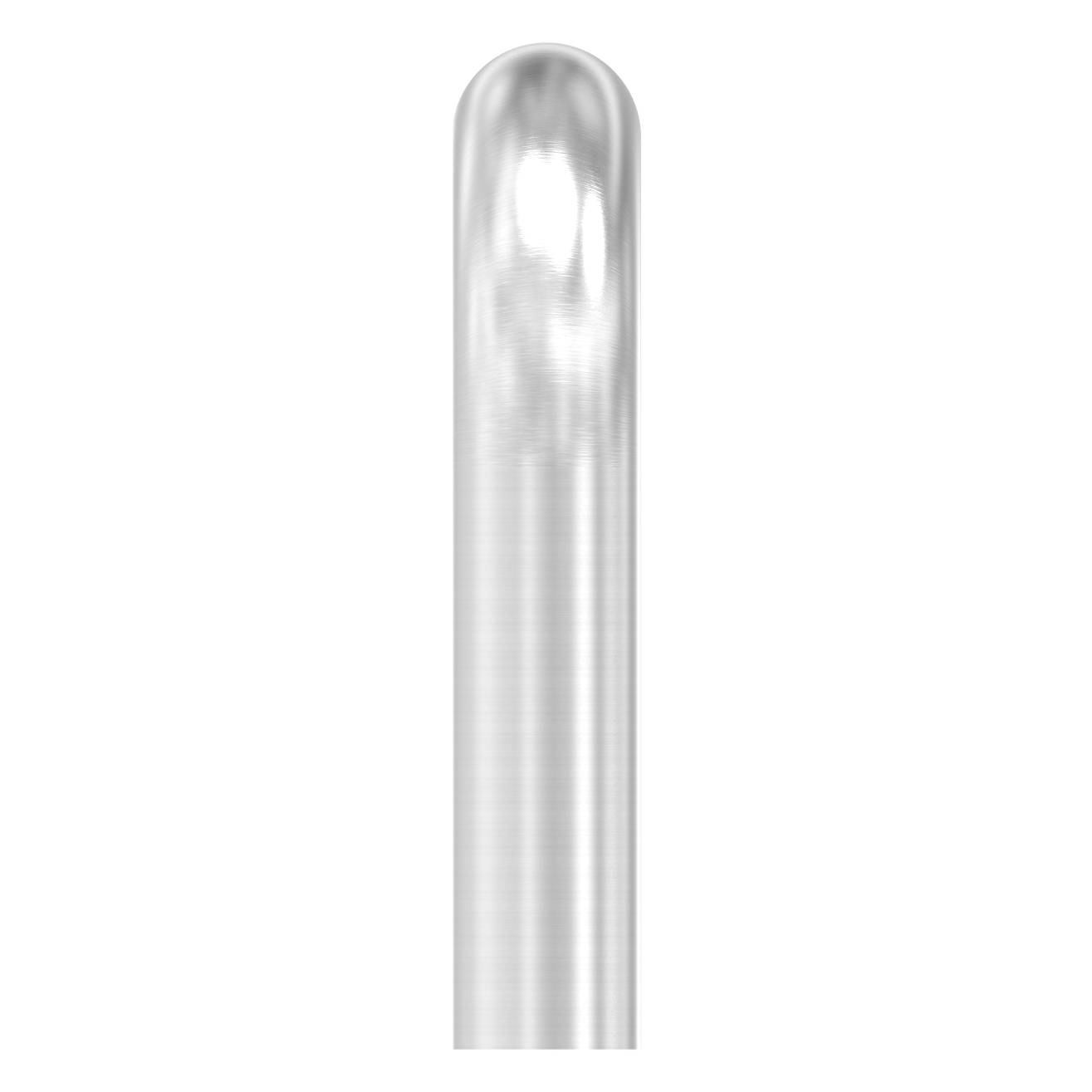

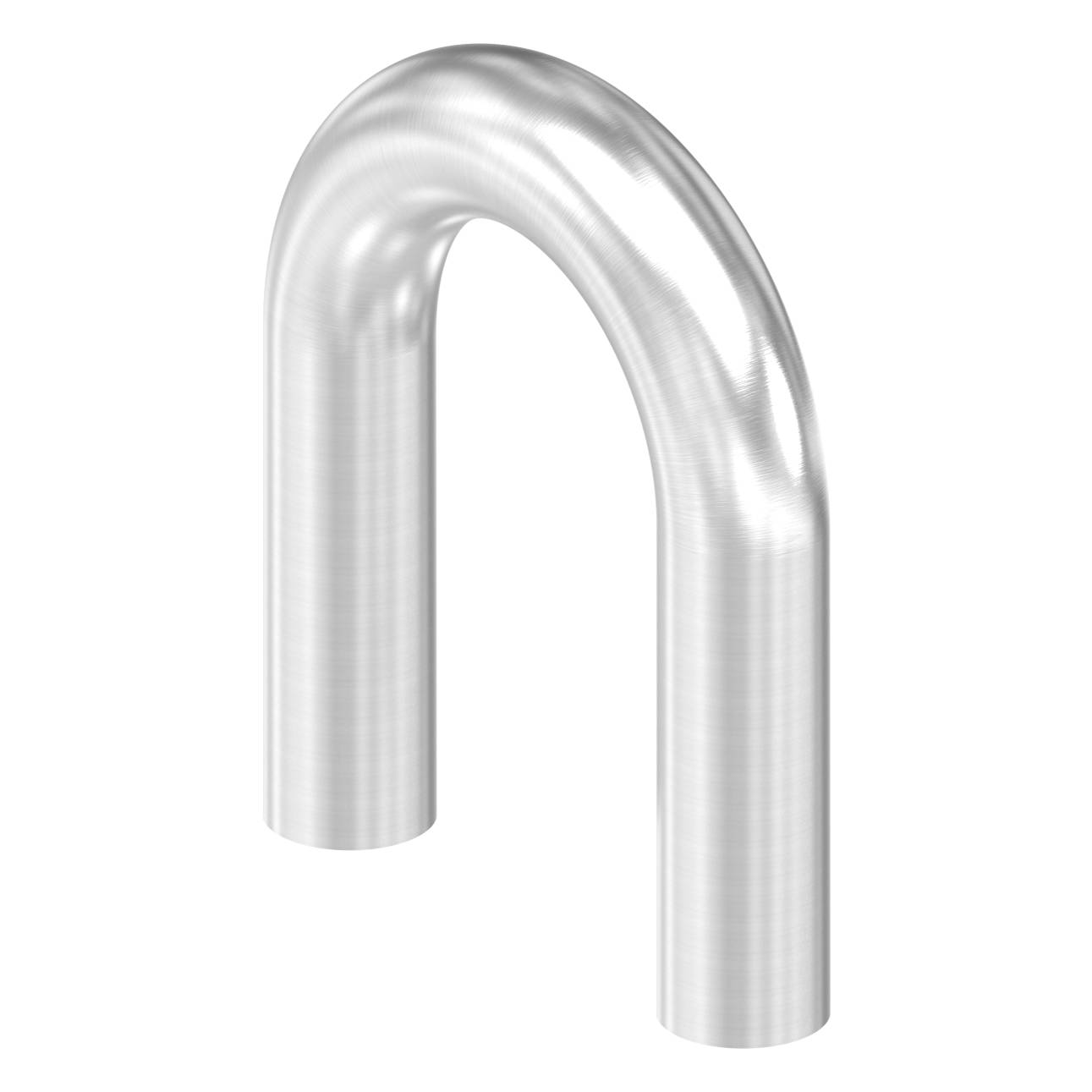

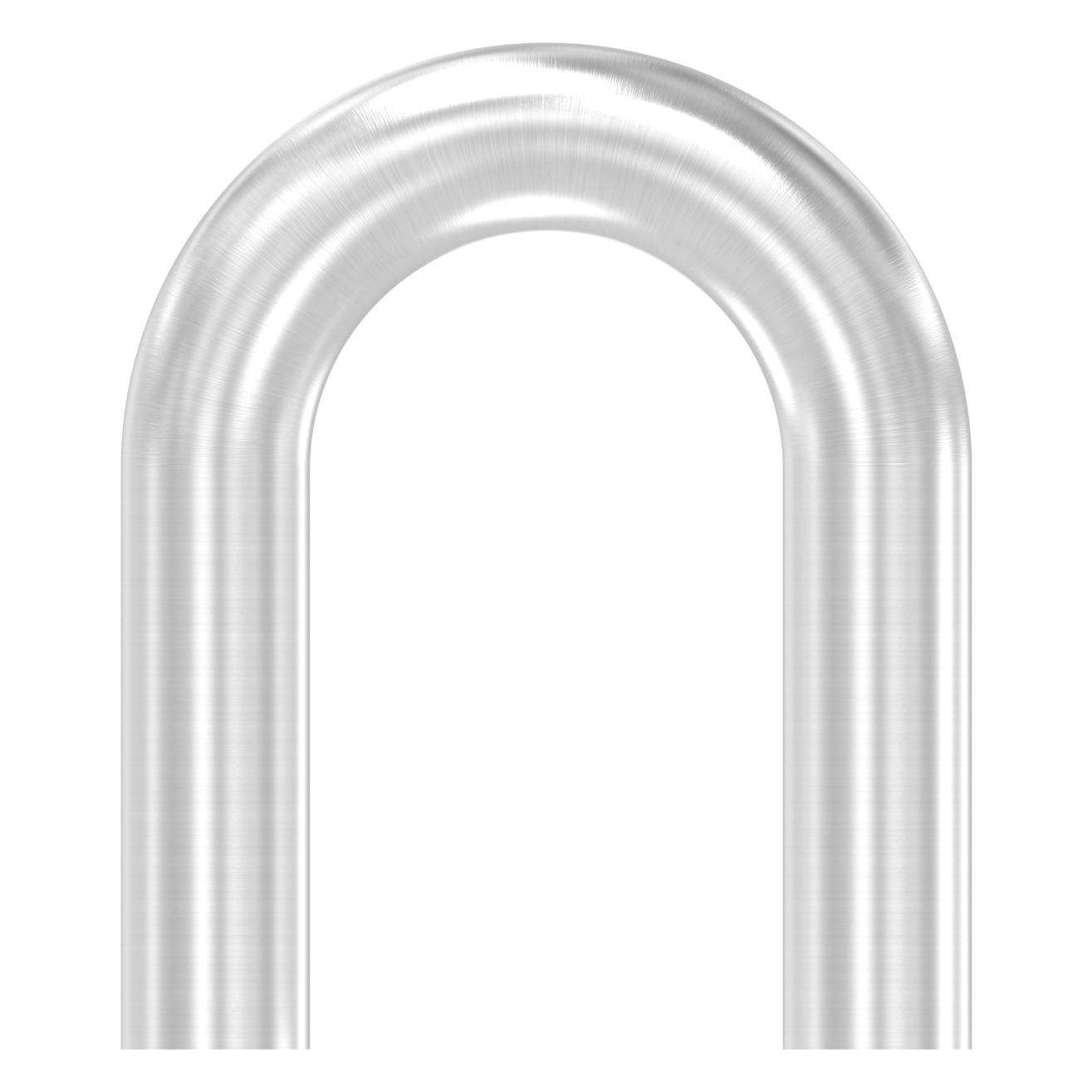

Tube bend 180°, made from 42.4x2.5mm tube, AISI304
Art-Nr.55140-U074|In stock

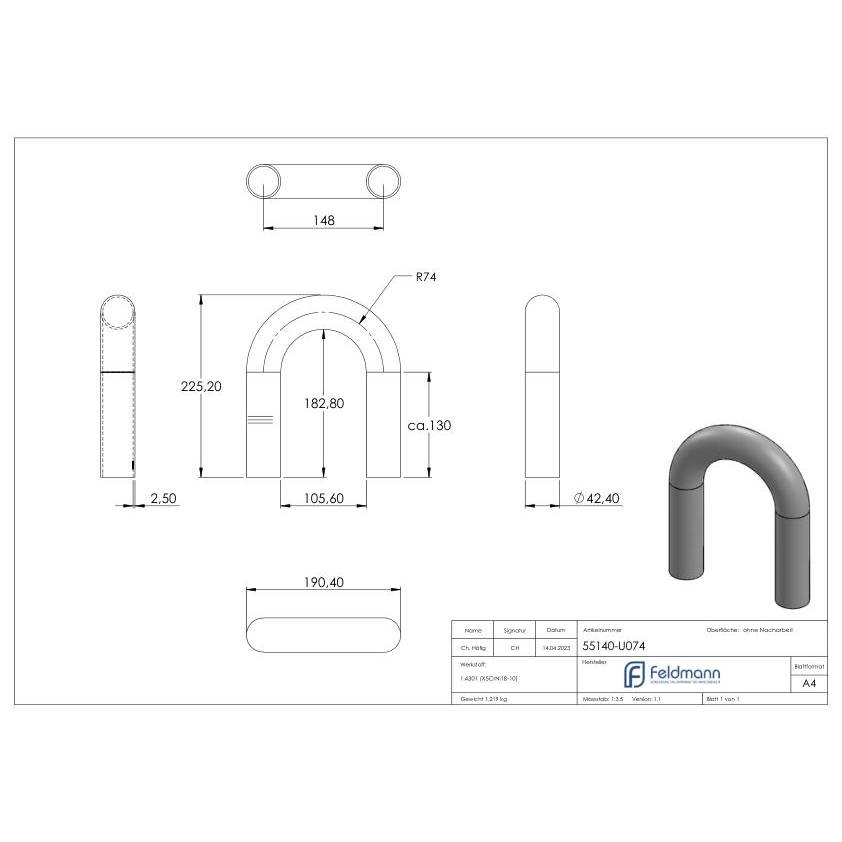

Tube bend 180°, made from 42.4 x 2.5 mm seamless tube, centre radius: 74 mm, not reworked after bending, bend outlet: approx. 130 mm, AISI304
| Article number | 55140-U074 |
| Weight in Kg | 1.428 |
| Length x Width x Height in mm | 287 x 193 x 43 |
| Unit | Piece |
| Minimum Purchase | 1 Piece |
Material |
V2A (1.4301) |
Angle |
180° |
Outer diameter |
42,4mm |
